Matchmaking

The Beamable Multiplayer service allows game makers to create real-time and turn-based multi-user game experiences. For a project to offer multiplayer, it must first offer matchmaking.

In multiplayer gaming, matchmaking is the process of creating/finding a Match (for example, a Multiplayer 'Room') based on criteria. For example, a client could say "give me a match to play in with 2 total players of any skill level". Beamable supports matchmaking through its MatchmakingService.

The Matchmaking service has many built-in events to attach listeners (match starting, search timeout, etc). This makes it very simple to connect your game's custom UI to Beamable's services.

The outcome of a successful matchmaking search gives the participating players a match ID. This can be used to integrate Beamable's in-house Multiplayer solution, or a third-party multiplayer suite such as Photon.

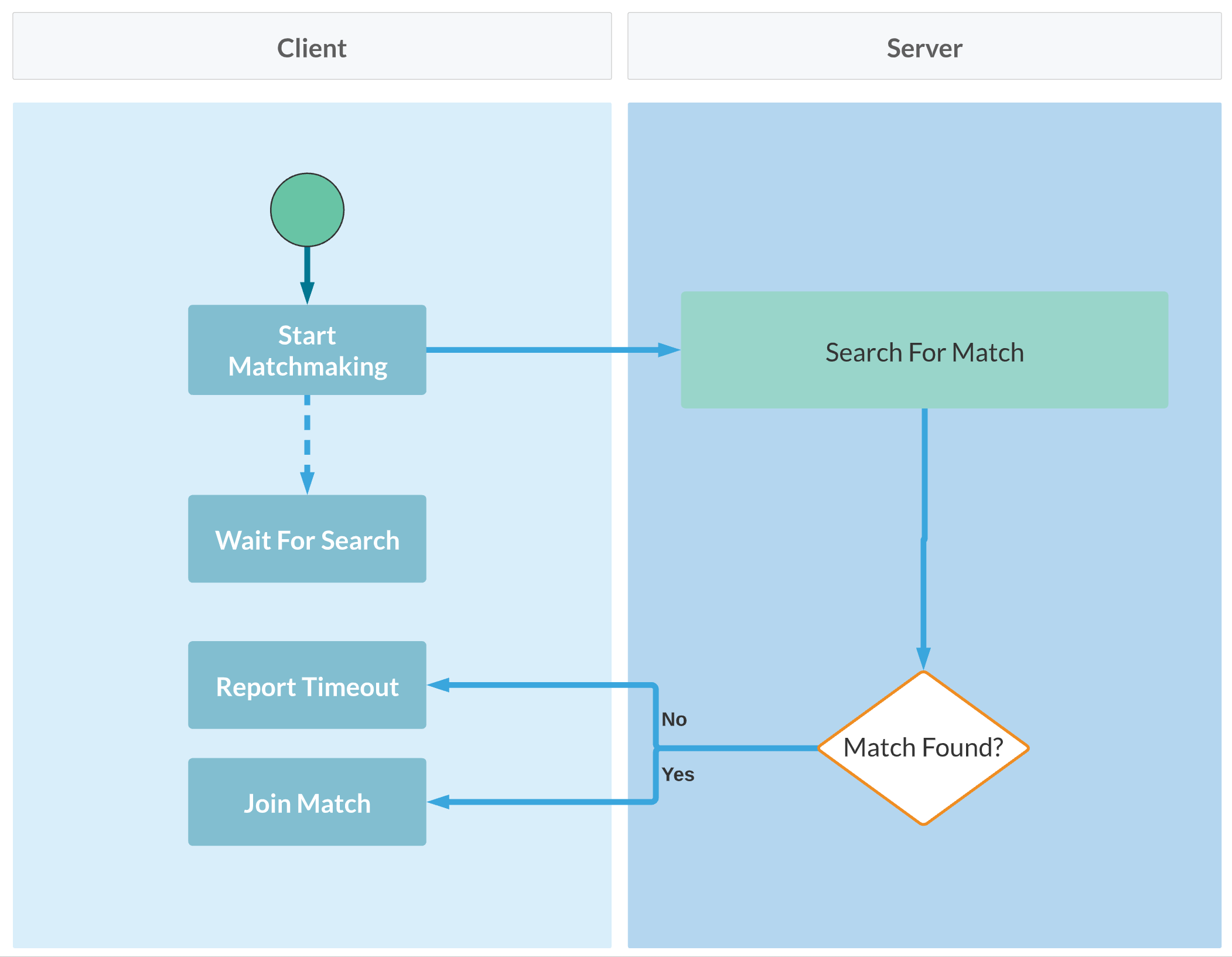

The basic flow for matchmaking is described below:

Action	Description
Start Matchmaking	The player is entered into a matchmaking search, where they will be matched up with other similarly skilled players.
Wait For Search	The player waits for other players to also enter matchmaking. This is a good place to display matchmaking callbacks to the user (how many players have been found so far, how long the search has taken in seconds, etc).
Report Timeout	If a duration of time has passed and a suitable match has not been found, the search is ended, at which point the player will need to restart searching.
Join Match	A suitable match has been found, the participating clients are now supplied with a match ID they can use to join the "room".

Matchmaking API

Experimental API

This API is experimental and may change in future versions.

The main API is the MatchmakingService.

Method Name	Detail
StartMatchmaking	Starts the matchmaking process
CancelMatchmaking	Stops the matchmaking process
MatchmakingHandle	Handles events from the matchmaking process • OnUpdate - Process is in progress, with success • OnMatchReady - Process complete with success • OnMatchTimeout - Process complete with failure

Here is a custom, game-specific implementation that matches any 2 players without filtering. Depending on game design needs, the service can be extended to filter and match players with similar attributes; for example, game skill level, network latency, spoken language, or geographic location.

The following shows partial sample code snippets:

Starting matchmaking

private async void SetupBeamable()
{
   // Partial code

    var myMatchmaking = new MyMatchmaking (
        _beamContext.Api.Experimental.MatchmakingService,
        simGameType,
        _beamContext.PlayerId);

    myMatchmaking.OnProgress.AddListener(MyMatchmaking_OnProgress);
    myMatchmaking.OnComplete.AddListener(MyMatchmaking_OnComplete);
    myMatchmaking.OnError.AddListener(MyMatchmaking_OnError);

    await myMatchmaking.StartMatchmaking();
}

Handling matchmaking success

private void MyMatchmaking_OnComplete(MyMatchmakingResult myMatchmakingResult)
{
    Debug.Log($"MyMatchmaking_OnComplete()...\n\n" +
              $"MatchId = {myMatchmakingResult.MatchId}\n" +
              $"LocalPlayer = {myMatchmakingResult.LocalPlayer}\n" +
              $"Players = {string.Join(",", myMatchmakingResult.Players)}\n");
}

Sample code

The following two scripts demonstrate a simple matchmaking implementation:

MatchmakingServiceExample.cs

using System.Collections.Generic;
using Beamable.Common.Content;
using UnityEngine;
using UnityEngine.Events;

namespace Beamable.Examples.Services.MatchmakingService
{
    public enum SessionState
    {
        None,
        Connecting,
        Connected,
        Disconnecting,
        Disconnected

    }


    /// <summary>
    /// Holds data for use in the <see cref="MatchmakingServiceExampleUI"/>.
    /// </summary>
    [System.Serializable]
    public class MatchmakingServiceExampleData
    {
        public SessionState SessionState = SessionState.None;
        public bool CanStart { get { return SessionState == SessionState.Disconnected;}}
        public bool CanCancel { get { return SessionState == SessionState.Connected;}}
        public List<string> MainLogs = new List<string>();
        public List<string> MatchmakingLogs = new List<string>();
        public List<string> InstructionsLogs = new List<string>();
    }

    [System.Serializable]
    public class RefreshedUnityEvent : UnityEvent<MatchmakingServiceExampleData> { }

    /// <summary>
    /// Demonstrates the creation of and joining to a
    /// Multiplayer game match with Beamable Multiplayer.
    /// </summary>
    public class MatchmakingServiceExample : MonoBehaviour
    {
        //  Events  ---------------------------------------
        [HideInInspector]
        public RefreshedUnityEvent OnRefreshed = new RefreshedUnityEvent();


        //  Fields  ---------------------------------------

        /// <summary>
        /// This defines the matchmaking criteria including "NumberOfPlayers"
        /// </summary>
        [SerializeField] private SimGameTypeRef _simGameTypeRef;
        private BeamContext _beamContext;
        private MyMatchmaking _myMatchmaking = null;
        private SimGameType _simGameType = null;
        private MatchmakingServiceExampleData _data = new MatchmakingServiceExampleData();

        //  Unity Methods  --------------------------------
        protected void Start()
        {
            string startLog = $"Start() Instructions..\n" +
                              $"\n * Play Scene" +
                              $"\n * View UI" +
                              $"\n * Press 'Start Matchmaking' Button \n\n";

            Debug.Log(startLog);

            _data.InstructionsLogs.Add("View UI");
            _data.InstructionsLogs.Add("Press 'Start Matchmaking' Button");

            SetupBeamable();
        }


        //  Methods  --------------------------------------
        private async void SetupBeamable()
        {
            _beamContext = BeamContext.Default;
            await _beamContext.OnReady;
            Debug.Log($"beamContext.PlayerId = {_beamContext.PlayerId}\n\n");

            _data.SessionState = SessionState.Disconnected;

            _simGameType = await _simGameTypeRef.Resolve();
            _data.MainLogs.Add($"beamContext.PlayerId = {_beamContext.PlayerId}");
            _data.MainLogs.Add($"SimGameType.Teams.Count = {_simGameType.teams.Count}");

            _myMatchmaking = new MyMatchmaking(
                _beamContext.Api.Experimental.MatchmakingService,
                _simGameType,
                _beamContext.PlayerId);

            _myMatchmaking.OnProgress.AddListener(MyMatchmaking_OnProgress);
            _myMatchmaking.OnComplete.AddListener(MyMatchmaking_OnComplete);
            _myMatchmaking.OnError.AddListener(MyMatchmaking_OnError);

            Refresh();
        }

        public async void StartMatchmaking()
        {
            string log = $"StartMatchmaking()";

            //Debug.Log(log);
            _data.SessionState = SessionState.Connecting;
            _data.MatchmakingLogs.Add(log);
            Refresh();

            await _myMatchmaking.StartMatchmaking();
        }

        public async void CancelMatchmaking()
        {
            string log = $"CancelMatchmaking()";
            //Debug.Log(log);

            _data.SessionState = SessionState.Disconnecting;
            _data.MatchmakingLogs.Add(log);
            Refresh();

            await _myMatchmaking.CancelMatchmaking();

            _data.SessionState = SessionState.Disconnected;
            Refresh();
        }


        public void Refresh()
        {
            string refreshLog = $"Refresh() ...\n" +
                                $"\n * MainLogs.Count = {_data.MainLogs.Count}" +
                                $"\n * MatchmakingLogs.Count = {_data.MatchmakingLogs.Count}\n\n";

            //Debug.Log(refreshLog);

            // Send relevant data to the UI for rendering
            OnRefreshed?.Invoke(_data);
        }

        //  Event Handlers  -------------------------------
        private void MyMatchmaking_OnProgress(MyMatchmakingResult myMatchmakingResult)
        {
            string log = $"OnProgress(), Players = {myMatchmakingResult.Players.Count} / {myMatchmakingResult.PlayerCountMax}";
            _data.MatchmakingLogs.Add(log);
            Refresh();
        }


        private void MyMatchmaking_OnComplete(MyMatchmakingResult myMatchmakingResult)
        {
            string log = $"OnComplete()...\n" +
                         $"\tMatchId = {myMatchmakingResult.MatchId}\n " +
                         $"\tLocalPlayer = {myMatchmakingResult.LocalPlayer}\n" +
                         $"\tPlayers = {string.Join(",", myMatchmakingResult.Players)}\n";

            //Debug.Log(log);
            _data.SessionState = SessionState.Connected;
            _data.MatchmakingLogs.Add(log);
            Refresh();
        }


        private void MyMatchmaking_OnError(MyMatchmakingResult myMatchmakingResult)
        {
            _data.SessionState = SessionState.Disconnected;
            string log = $"OnError(), ErrorMessage = {myMatchmakingResult.ErrorMessage}\n";

            //Debug.Log(log);
            _data.MatchmakingLogs.Add(log);
            Refresh();
        }
    }

MyMatchmaking.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Beamable.Common.Content;
using Beamable.Experimental.Api.Matchmaking;
using UnityEngine;
using UnityEngine.Events;

namespace Beamable.Examples.Services.MatchmakingService
{
   public class MyMatchmakingEvent : UnityEvent<MyMatchmakingResult>{}

   /// <summary>
   /// Contains the in-progress matchmaking data.
   /// When the process is complete, this contains
   /// the players list and the MatchId
   /// </summary>
   [Serializable]
   public class MyMatchmakingResult
   {
      //  Properties  -------------------------------------
      public List<long> Players
      {
         get
         {
            if (_matchmakingHandle == null || _matchmakingHandle.Status == null ||
                _matchmakingHandle.Status.Players == null)
            {
               return new List<long>();
            }
            return _matchmakingHandle.Status.Players.Select(i => long.Parse(i)).ToList();
         }
      }

      public int PlayerCountMin
      {
         get
         {
            int playerCountMin = 0;
            foreach (TeamContent teamContent in _simGameType.teams)
            {
               if (teamContent.minPlayers.HasValue)
               {
                  playerCountMin += teamContent.minPlayers.Value;
               }
            }
            return playerCountMin;
         }
      }

      public int PlayerCountMax
      {
         get
         {
            int playerCountMax = 0;
            foreach (TeamContent teamContent in _simGameType.teams)
            {
               playerCountMax += teamContent.maxPlayers;
            }
            return playerCountMax;
         }
      }

      public string MatchId
      {
         get
         {
            return _matchmakingHandle?.Match?.matchId;
         }
      }

      public long LocalPlayer { get { return _localPlayer; } }
      public SimGameType SimGameType { get { return _simGameType; } }
      public MatchmakingHandle MatchmakingHandle { get { return _matchmakingHandle; } set { _matchmakingHandle = value;} }
      public bool IsInProgress { get { return _isInProgress; } set { _isInProgress = value;} }

      //  Fields  -----------------------------------------
      public string ErrorMessage = "";
      private long _localPlayer;
      private bool _isInProgress = false;
      private MatchmakingHandle _matchmakingHandle = null;
      private SimGameType _simGameType;

      //  Constructor  ------------------------------------
      public MyMatchmakingResult(SimGameType simGameType, long localPlayer)
      {
         _simGameType = simGameType;
         _localPlayer = localPlayer;
      }

      //  Other Methods  ----------------------------------
      public override string ToString()
      {
         return $"[MyMatchmakingResult (" +
            $"MatchId = {MatchId}, " +
            $"Teams = {_matchmakingHandle?.Match?.teams}, " +
            $"players.Count = {Players?.Count})]";
      }
   }

   /// <summary>
   /// This example is for reference only. Use as
   /// inspiration for usage in production.
   /// </summary>
   public class MyMatchmaking
   {
      //  Events  -----------------------------------------
      public MyMatchmakingEvent OnProgress = new MyMatchmakingEvent();
      public MyMatchmakingEvent OnComplete = new MyMatchmakingEvent();
      public MyMatchmakingEvent OnError = new MyMatchmakingEvent();


      //  Properties  -------------------------------------
      public MyMatchmakingResult MyMatchmakingResult { get { return _myMatchmakingResult; } }


      //  Fields  -----------------------------------------
      private MyMatchmakingResult _myMatchmakingResult = null;
      private Experimental.Api.Matchmaking.MatchmakingService _matchmakingService = null;
      public const string TimeoutErrorMessage = "Timeout";


      //  Constructor  ------------------------------------
      public MyMatchmaking(Experimental.Api.Matchmaking.MatchmakingService matchmakingService,
         SimGameType simGameType, long localPlayerDbid)
      {
         _matchmakingService = matchmakingService;
         _myMatchmakingResult = new MyMatchmakingResult(simGameType, localPlayerDbid);
      }


      //  Other Methods  ----------------------------------
      public async Task StartMatchmaking()
      {
         if (_myMatchmakingResult.IsInProgress)
         {
            Debug.LogError($"MyMatchmaking.StartMatchmaking() failed. " +
                           $"IsInProgress must not be {_myMatchmakingResult.IsInProgress}.\n\n");
            return;
         }

         _myMatchmakingResult.IsInProgress = true;

         _myMatchmakingResult.MatchmakingHandle =  await _matchmakingService.StartMatchmaking(
            _myMatchmakingResult.SimGameType.Id,
            maxWait: TimeSpan.FromSeconds(10),
            updateHandler: handle =>
            {
               OnUpdateHandler(handle);
            },
            readyHandler: handle =>
            {
               // Call both
               OnUpdateHandler(handle);
               OnReadyHandler(handle);
            },
            timeoutHandler: handle =>
            {
               // Call both
               OnUpdateHandler(handle);
               OnTimeoutHandler(handle);
            });
      }


      public async Task CancelMatchmaking()
      {
         await _matchmakingService.CancelMatchmaking(_myMatchmakingResult.MatchmakingHandle.Tickets[0].ticketId);
      }


      //  Event Handlers  ----------------------------------
      private void OnUpdateHandler(MatchmakingHandle handle)
      {
         OnProgress.Invoke(_myMatchmakingResult);
      }

      private void OnReadyHandler(MatchmakingHandle handle)
      {
         Debug.Assert(handle.State == MatchmakingState.Ready);
         _myMatchmakingResult.IsInProgress = false;
         OnComplete.Invoke(_myMatchmakingResult);
      }

      private void OnTimeoutHandler(MatchmakingHandle handle)
      {
         _myMatchmakingResult.IsInProgress = false;
         _myMatchmakingResult.ErrorMessage = TimeoutErrorMessage;
         OnError?.Invoke(_myMatchmakingResult);
      }
   }
}

Getting started

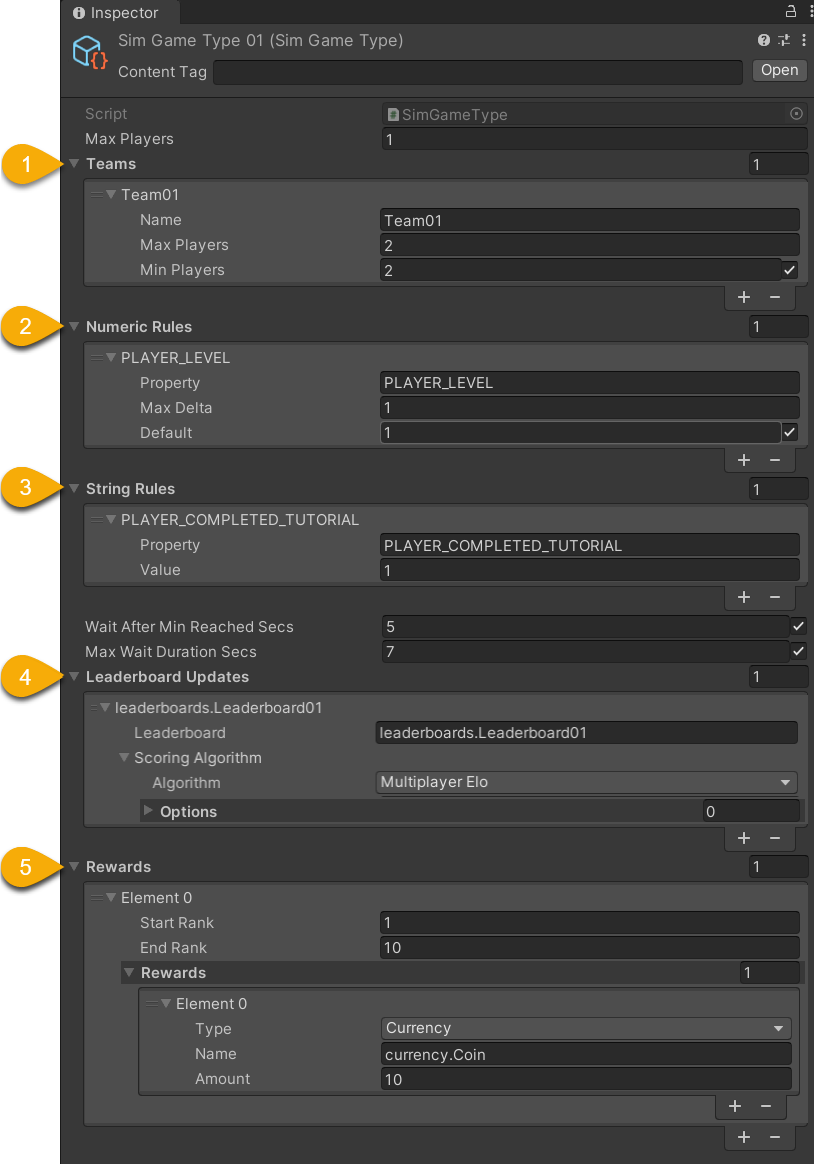

To create a Matchmaking experience with Beamable, using the SimGameType content type is required. It allows deep configuration and customization.

The following steps outline the matchmaking setup process:

Step	Detail
1. Setup Beamable	• See Getting Started
2. Setup Content	• The content type related to Matchmaking is the SimGameType. It defines the parameters for the match to be created.
3. Create C# multiplayer-specific logic	• Access Local Player Information • Create Multiplayer Session • Handle Events • Send Events Note: See Multiplayer for more info
4. Create C# game-specific logic	• Convert input to events • Gracefully handle network latency • Convert events into graphics and audio rendering • Handle game logic (e.g., win/loss conditions)

The content type related to Matchmaking is the SimGameType. It defines the parameters for the match to be created.

Name	Detail
1. Teams	• Name - Arbitrary name • MaxPlayers - Maximum players allowed • MinPlayers - Minimum players allowed
2. Numeric Rules	Match to players who have an approximate game.private.player stat value • Property - The stat name • Max Delta - Largest stat value difference which will allow a match • Default - Value used if no stat value exists
3. String Rules	Match to players who have an exact game.private.player stat value • Property - The stat name • Value - Required value to allow a match
4. Leaderboard Updates	• Leaderboard - The reference to update • Scoring Algorithm - (Advanced use cases)
5. Rewards	• Start Rank - The best rank to be rewarded • End Rank - The worst rank to be rewarded • Reward - The type and amount of the reward
Misc	• MaxPlayers - This is deprecated • WaitAfterMinReachedSecs - Duration to wait if match found (with just the minimum players) • MaxWaitDurationSecs - Duration to wait if no match found
