Content system

Beamable Content System is a read-only (at runtime) arbitrary data store that allows you to define arbitrary JSON-serialized content objects for use at runtime. Several of Beamable's own managed features also use content in some way or another.

The system is manifest-based.

• A manifest is a list of published content objects in a realm indexed by their content ids
• Publishing a manifest means first uploading all the individual content objects to Beamable and, after that, uploading a manifest that knows where the content objects live
• Downloading a manifest does not necessarily imply downloading the individual content object jsons (more information below)

You are solely responsible for maintaining backward compatibility for your custom content objects.

Each individual content object in each manifest is identified by an ID with the format below:

ContentTypeId.ContentName

ContentTypeId expands to the hierarchy of UBeamContentObject types, starting from the root type. For example:

UMyGameItemContent inherits from UBeamItemContent items.mygameitem.MyGameItemName

The last part of the ID is the only one you edit through the Content Window. The ContentTypeId is inferred by the type hierarchy.

Content window

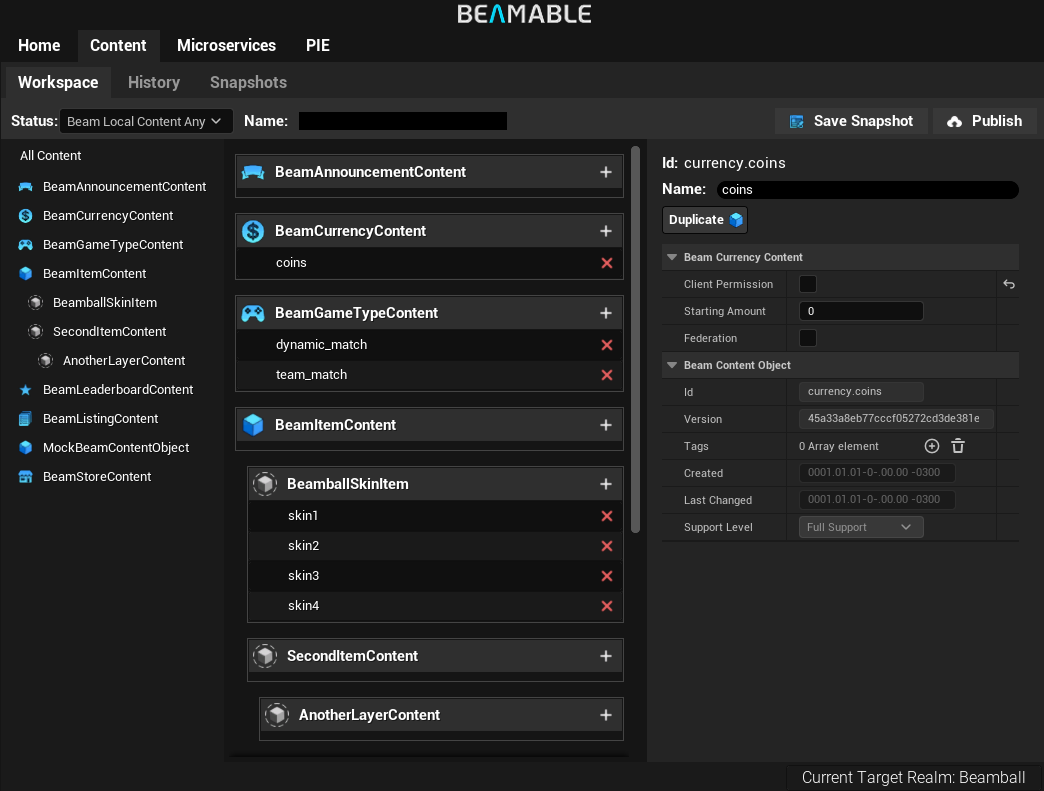

The Content Window is the main tool to create, edit, and publish new content to your project.

The list of content objects displayed in the content window is very similar to a "Status" window in Git or some other version control systems. Besides showing your local content, it also presents the differences between your local state and the state in your currently targeted Realm.

These differences are represented by the [+],[-] and [M] signs.

• [+]: Means the content exists locally but NOT in the realm.
• [M]: Means the content exists BOTH locally and in the realm AND that it is modified relative to the one in the realm.
  • [!]: Means the content had changes locally when someone else published to the realm. This means that your changes would overwrite the published changes. This is called a Conflict. You MUST resolve conflicts before changes can be published.
• [-]: Means the content DOES NOT exist locally but DOES exist in the realm.

If the content is not marked with any of these signs, it means it is in sync with the realm.

Changing Realm

Content is stored locally per-Realm inside the .beamable folder. This means that, when you change realms in the editor, you will sync your local content state against the new realm's content without losing your local state against the previous realm.

Where can I find the content files?

While you edit the content objects as UObject and a details panel, these are not stored as UDataAsset or anything inside Unreal itself. These are stored as individual JSON objects inside ProjectRoot/.beamable/content folder. This makes it more friendly for version control systems.

Creating, modifying, and deleting content

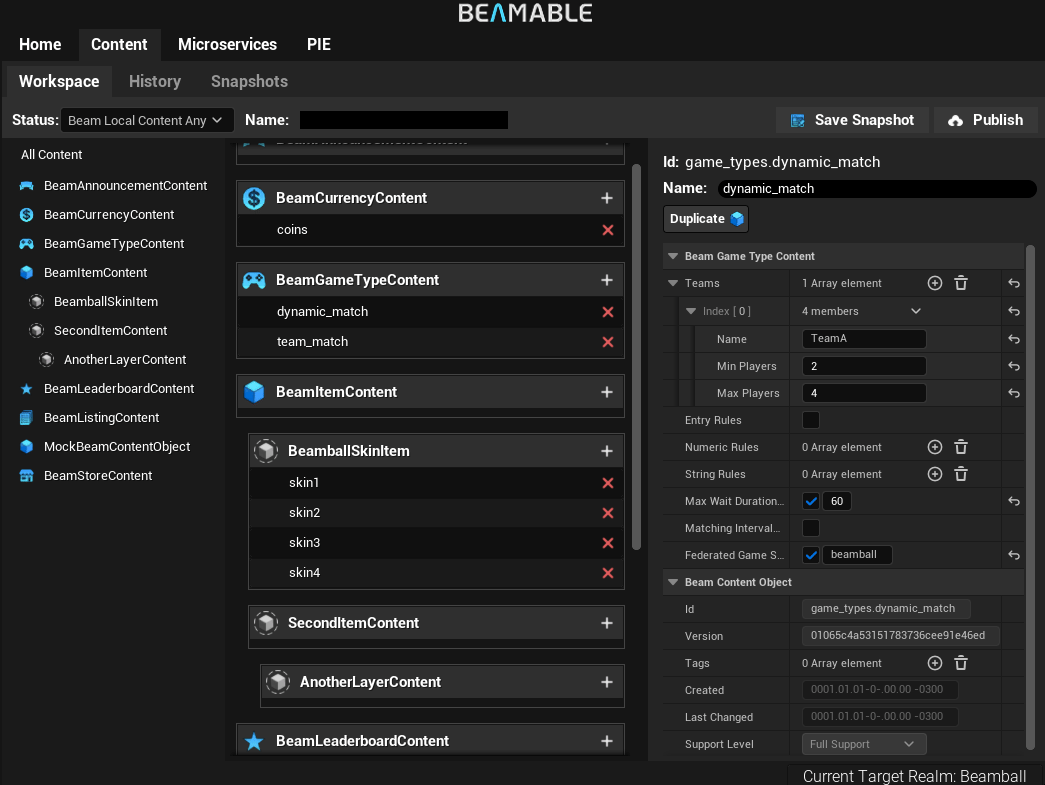

To create a new piece of content locally:

1. Select + next to any of the content type headers to create a content of that type.
2. Rename the created content; it cannot contain whitespaces or ..

Deleting content can be done simply by pressing Del on your keyboard with an item selected or selecting the [X] button in the Item Details.

Items created locally will have a [+] sign next to them informing that they are not in the realm yet and will be added in the next publish. Items deleted locally that have counterparts on the realm will have a [-] sign next to them informing that they will be removed from the realm in the next publish.

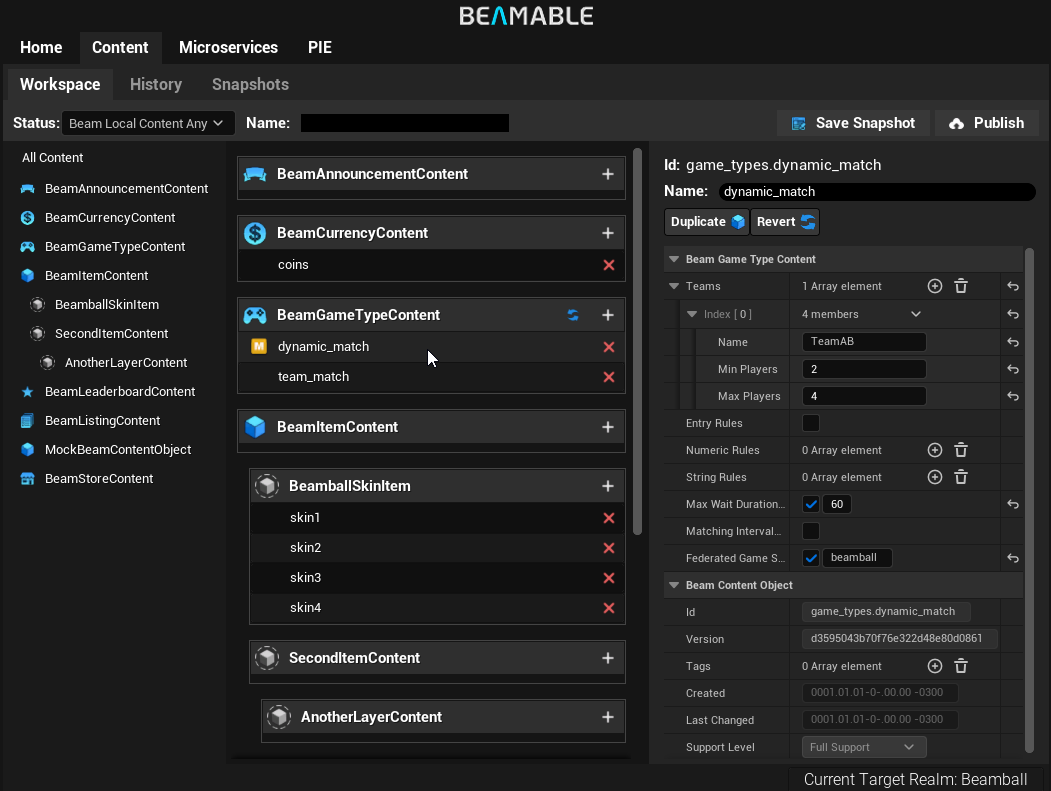

Modifying content can be done via the Details Editor in the Content Window. Modified content, relative to the latest published manifest, is shown with an [M] icon next to them. They can be reverted to their state at the realm by using the Revert button.

Publishing and auto-syncing

Publishing tells the Beamable SDK that you want to send your entire local content state to the realm and make that the source of truth. The source of truth for content in a realm is always whatever manifest was last published to that realm.

To publish content to a realm simply use the Publish button.

For Designers

You can think of the realm's published content as a "Dropbox/Google Drive folder" that contains all content objects' serialized JSON files. The manifest is an index that tells the SDK which content exists and where to download their JSON files.

Publishing means deleting all the contents of the Dropbox folder and replacing them with your local files.

Understanding content auto-sync rules

It is often desirable to have designers in a realm that is stable and allow them to work in Blueprints, Beamable Content and Unreal Data Asset in the same realm plus branch combination.

To enable this workflow, the Beamable SDK:

• Listens for whenever any developer publishes content to a realm and notifies other developers working on that same realm
  • If Designer-A publishes changes, Designer-B will see a UE-notification informing them that Designer-A has just published.


• Automatically keeps any un-modified local files up-to-date with the latest version of that file published to the realm
  • If Designer-A publishes changes to Content-1 and Designer-B had no changes made to that file in their machine, the SDK in Designer-B's machine will automatically update their Content-1 file to match the newest version of it published by Designer-A.
  • The notification tells you what content was automatically synchronized.


• Informs you that you had made changes to a file that was modified in the published manifest. This is called a Conflict
  • If Designer-A publishes changes to Content-1 and Designer-B had made changes to that file in their machine, the SDK in Designer-B's machine will NOT automatically update their Content-1 file. Instead, it'll accuse a Conflict.
  • The notification informs you if a conflict happened

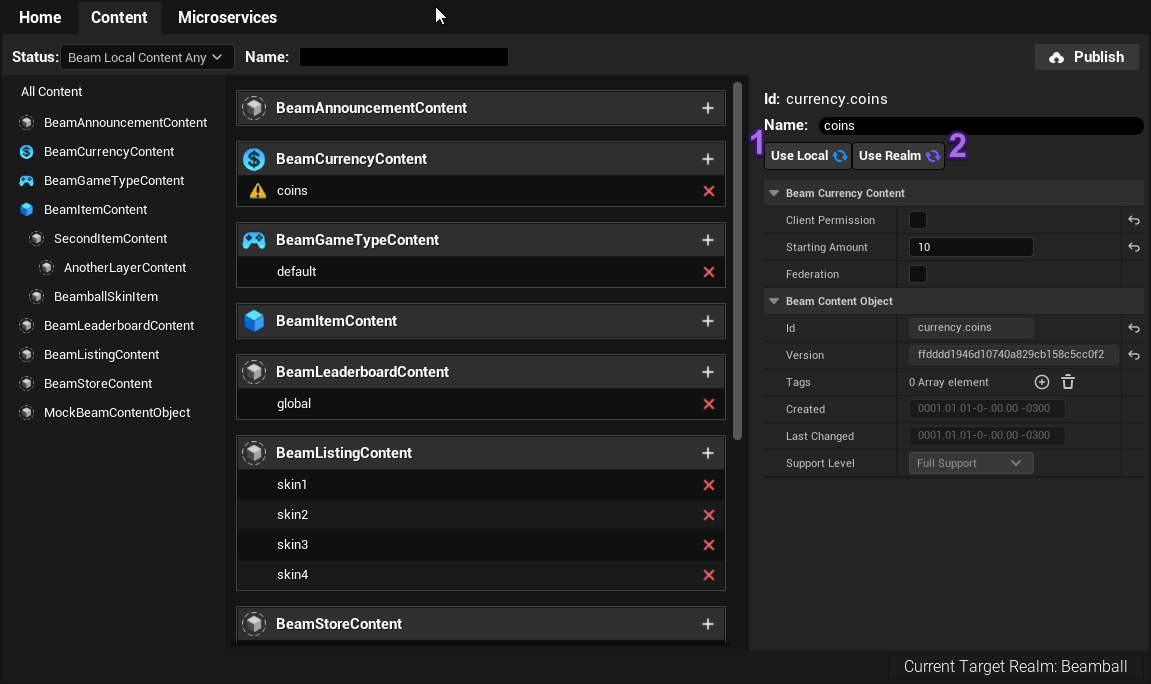

To prevent Designer-B from overwriting changes made by Designer-A the SDK will not allow Designer-B to Publish until all detected conflicts are resolved. Resolving a conflict can be done in one of two ways:

• Use Realm: this will discard all local changes to that content and use whatever was published
• Use Mine: this will simply ignore the conflict (which means that it will allow you to publish and your publish WILL overwrite the version in the realm)

Therefore, consider these practices:

• Organize the designers in your realm to minimize the chance of conflicts
  • As long as they are working in different content objects, working in the same realm should cause no conflicts.


• Instruct designers to ALWAYS talk to the person whose publish action caused the conflict before resolving things
  • This is why the SDK shows who made the last publish that caused the conflict

This workflow can also be used for engineers that are developing non-Beamable related features.

In addition to the workflow above, there are cases where you might want to create realms to have a more controlled environment for developing. Common examples are:

• Large features that make use of new custom content definitions developed alongside Microservices
• Content schema modifications or equivalents that will require migrating existing content to a new schema

To achieve this — just create a new realm for the development of that feature.

Feature Branches vs Feature Flags

If you like working with feature branches, pair this realm with the feature branch. Limit this to large features that will take a lot of time in development.

If you are a team that prefer to use feature flags over feature branches, you can still make the realm. Just write the code behind the feature flag to expect to be running in a realm whose Microservices, configuration and content match the feature realm's one.

Once your work is done, you can configure the stable realm with whatever new configuration is required and then use the CLI or the Portal to move the content over to the new realm.

Custom content types

In Unreal, you define content schemas as sub-classes of UBeamContentObject or any of its subtypes available in the SDK ( UBeamItemContent , UBeamGameTypeContent , etc.). Every content type must define a unique string ID for that particular type and a function that returns it.

The following example of UBeamCurrencyContent shows how that can be done:

UCLASS(BlueprintType)
class BEAMABLECORE_API UBeamCurrencyContent : public UBeamContentObject
{
    GENERATED_BODY()
public:
    // Define the ContentTypeId for this type.
    UFUNCTION()
    void GetContentType_UBeamCurrencyContent(FString& Result){ Result = TEXT("currency"); }

    // Define the properties you wish
    UPROPERTY(EditAnywhere, BlueprintReadWrite)
    FBeamClientPermission clientPermission;

    UPROPERTY(EditAnywhere, BlueprintReadWrite)
    int64 startingAmount;

    UPROPERTY(EditAnywhere, BlueprintReadWrite, DisplayName="Federation")
    FOptionalBeamFederation external;
};

Annotate your UPROPERTY with EditAnywhere and either:

• BlueprintReadOnly if you are not writing utilities to create the objects for you.
• BlueprintReadWrite if you are writing utilities to create the objects for you.

Microservices

In a lot of cases, you will want to access these content objects in Microservices. For all of Beamable's own content-types ( UBeamCurrencyContent , etc.) you will find equivalents in the Microservice SDK. For your own custom types, you'll need to declare them in C#. To do so, use the serialization table below as reference to know how to map types from C++ to C#.

Supported content serialization

Serializable Type	In C# Microservices	Notes
Primitive Types
uint8 , int32 , and int64	byte, int and long.
	float and double.
	bool
Unreal Types
FString, FText, FName	string	These get serialized as JSON strings.
FGameplayTag	string	FGameplayTag::RequestGameplayTag for deserialization.
FGameplayTagContainer	string	FGameplayTagContainer::FromExportString for deserialization.
UClass*	string	Gets converted to FSoftObjectPath when serializing. Deserializing will first create the FSoftObjectPath and then resolve it.
TSoftObjectPtr	string	Gets converted to FSoftObjectPath when serializing. When None serializes as an empty string.
TArray<>	List<> or T[]	Any TArray<SomeType> will serialize normally as long as SomeType is also supported.
TMap<FString, >	Dictionary<string,>	Only FString keys are supported. The values can be any supported type.
Beamable Types
FBeamOptional	Optional____	Any property of a type implementing FBeamOptional doesn't get serialized if IsSet==false but does get serialized otherwise. For example, FOptionalInt32 serializes to nothing OR an int32.
FBeamSemanticType	string OR semantic type equivalent in C#	This always gets serialized as a JSON blob when inside UBeamContentObject.
FBeamArray and FBeamMap	ArrayOf and MapOf	Any implementation of these wrappers are serialized correctly as JSON arrays and JSON objects respectively. These are only used when you want to nest TArray<TArray<>> / TMap<,TMap<>> and still have Blueprint Support.
FBeamJsonSerializableUStruct	Any C# class that maps to your struct	Any type inheriting from this type gets serialized as a JSON object.
IBeamJsonSerializableUObject	Any C# class that maps to your class	UObject in content should have their classes annotated with DefaultToInstanced, EditInlineNew since you shouldn't reference assets directly inside content objects. For that, use TSoftObjectPtr<>.

Take a look at UMockBeamContentObject to see the supported types.

Runtime content subsystem

The SDK fetches the content manifest before the OnBeamableStarted callback is triggered. By default, it downloads the content manifest and each individual piece of content. You can enable and disable this behavior it can be configured to do so inside Project Settings -> Beamable Runtime.

The SDK also supports live content updates (if you publish content while the game client is running):

• While the OwnerUserSlot is signed in to Beamable, UBeamContentSubsystem listens for notifications that the realm's content manifest has been updated.
• When that happens, the SDK re-downloads the manifest

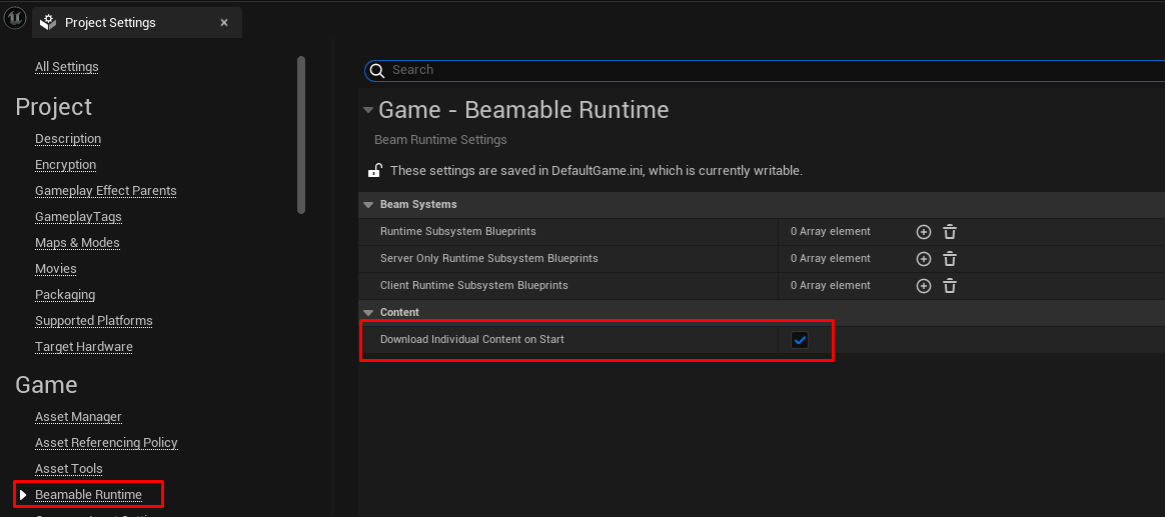

• If bDownloadIndividualContentAtStart is true:
  • The SDK downloads and caches all updated content objects relative to the last manifest downloaded in this client
  • These updates are cached locally inside the Saved directory in binary form such that a user does not need to re-download content in subsequent runs of your game unless the published manifest changes.
  • This cache is invalidated if your game-version changes, the SDK version changes or the UE version changes
• If bDownloadIndividualContentAtStart is false:
  • You are then responsible for downloading each individual content via the APIs: FetchIndividualContentBatchOperation and FetchIndividualContentOperation.
  • Caching will still occur automatically when manually downloading content

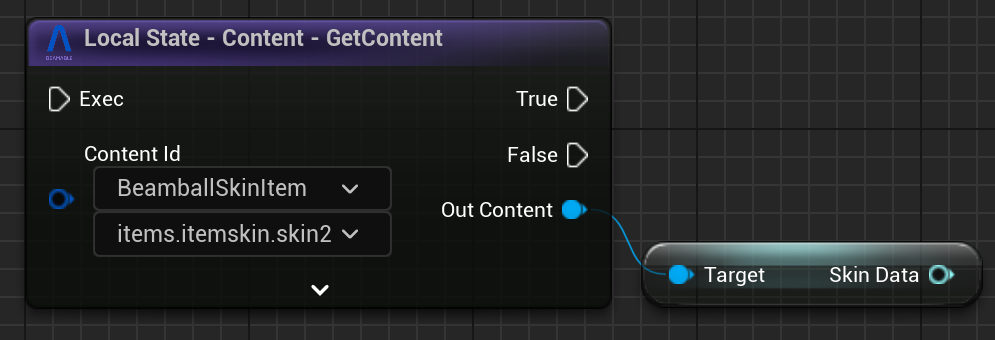

Accessing content at runtime is fairly simple:

Content snapshots

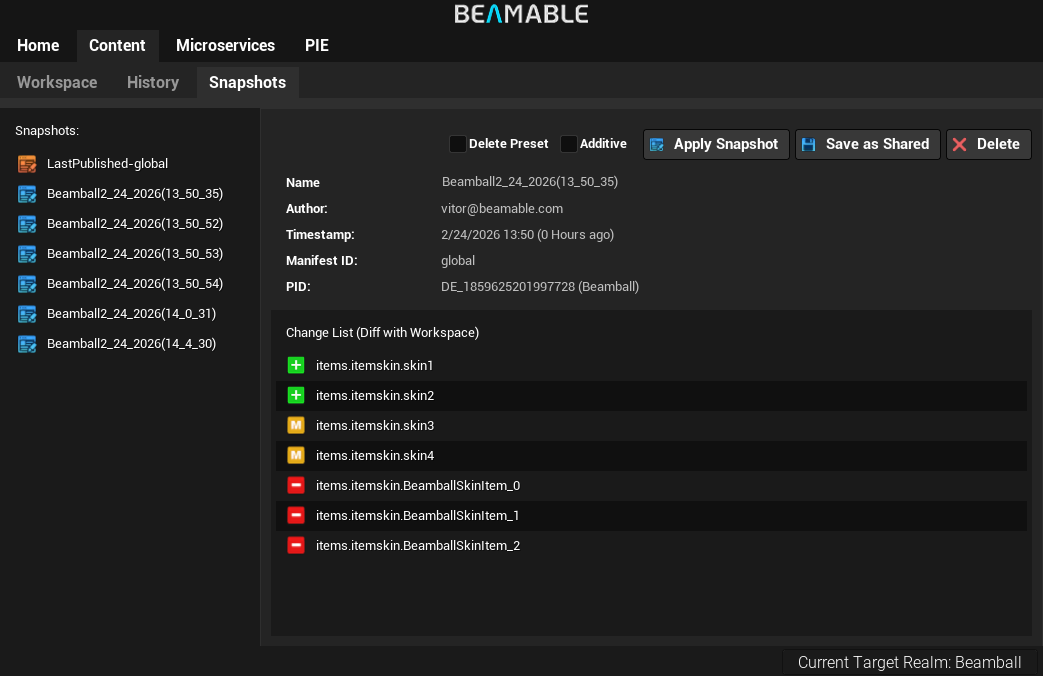

The content snapshot system allows you to save the state of your local content at any given time and restore it later.

This is useful for a couple of workflows:

• You can use it to save the state of your local content before trying out risky changes and then restore it if you don't like the changes
• You can save the current state of your local content and share it with your teammates so they can load it in their machines and have the same local content state as you
• You can save the content state of your current realm and apply it to another realm

Content snapshots can be local or shared between users. The local ones are kept in the .beamable/contentSnapshots folder and the shared ones in the .beamable/shared/contentSnapshot folder of the project, so you can version it with git.

Creating content snapshots

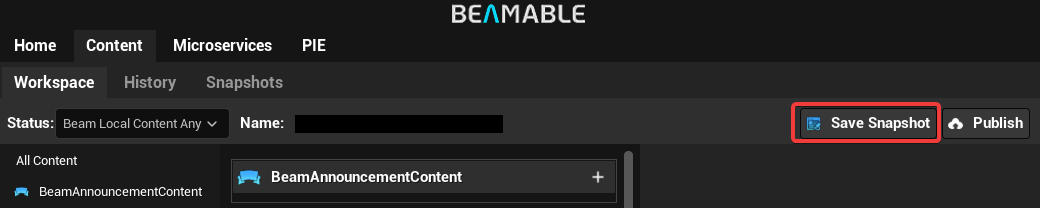

To create a content snapshot, click on the button in the top right corner of the Workspace window. This will create a snapshot of your current local content state. It then will be added to the list of snapshots in the Snapshots Window.

Applying content snapshots

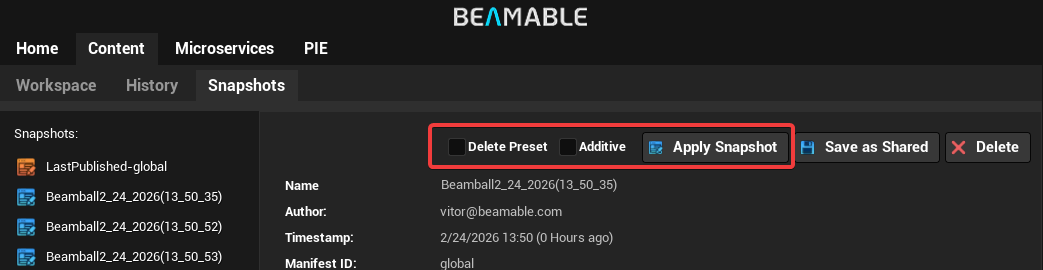

To apply the content of a snapshot to your current workspace, simply select the snapshot in the list and click on the Apply Snapshot button

Additionally you can also select the following options:

• Delete Preset: deletes the snapshot after applying it
• Additive: if checked, the snapshot will be applied on top of your current local content state only adding the new and modified content. If unchecked, the snapshot will replace your current local content state

Sharing content snapshots

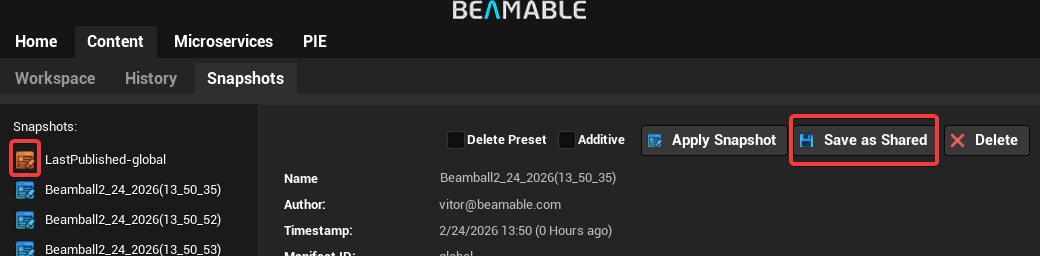

Shared snapshots are stored in the .beamable/shared/contentSnapshot folder, so you can share them with your teammates by sharing that file through git or any other way you like. To save a Local Snapshot as Shared simply click on the Save as Template button.

The Shared Snapshots are identified in the list with a different (orange) icon.

Notice that every time you publish content to the realm it will automatically update the shared snapshot called LatestPublished to match the content that was just published. This means that you can always share with your teammates the latest published content by sharing that snapshot.

Content history

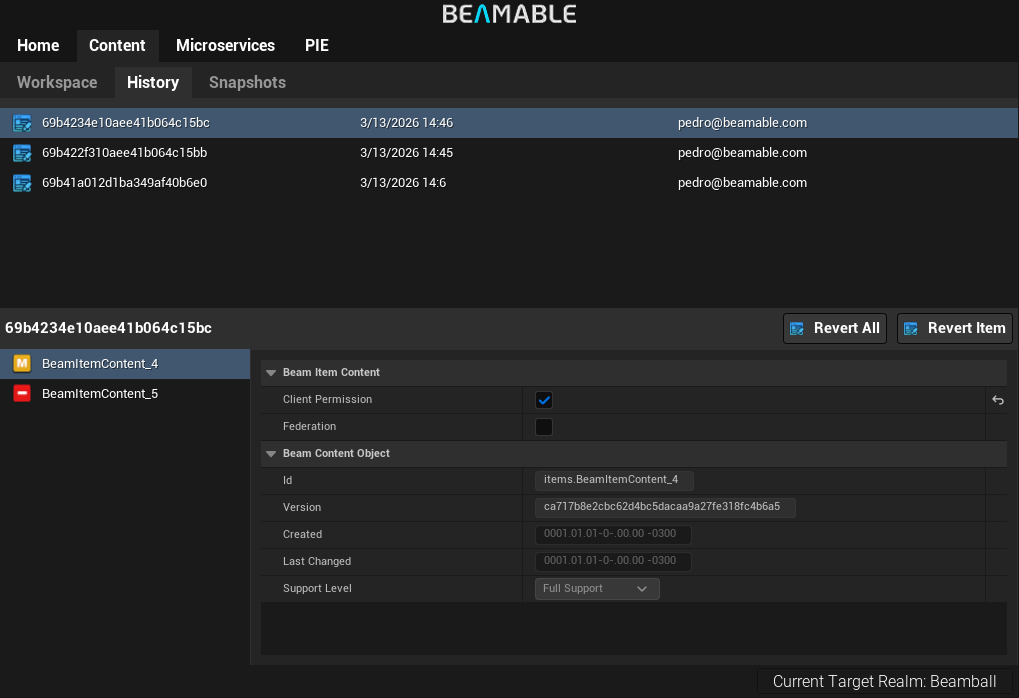

The content history system allows you to see the history of your content publishing and revert to any previous version of your content.

You can revert the whole content state to a previous version by clicking on the Revert All button. This will replace your local content state with the content state of that version or revert individual content objects to a previous version by clicking on the Revert Item button in the content details. This will replace your local version of that content object with the version of that content object in that version.

Baking content

In a couple of cases, you might want to bake content to distribute it with your build:

• If you plan to release a new build every time you want to update your game
• If you want to trade off some binary size for spending less time waiting for the individual content download at initialization time

To enable those cases, the SDK includes an editor utility that bakes your local content into a UBeamContentCache. This is a special asset type that has the UBeamContentObject instances serialized using UE's binary serialization as opposed to JSON.

Keep in mind that this utility uses your local content, so make sure your content matches the realm's content before running it.

The utility is called EBP_BakeContent and can be found in Beamable Core's plugin folder under /Editor/Utility/EBP_BakeContent.EBP_BakeContent. Running this utility goes through your local content and bakes them into a BCC_ assets ( UBeamContentCache ) stored in /Game/Beamable/Content/Manifests/Cooked/ directory. This directory is configured, by default, to be included in packaged games.

At runtime, any UBeamContentCache is loaded automatically by the UBeamContentSubsystem if it exists and is configured correctly; so you don't have to do anything to have it work.

I can't find the Beamable Core Content in the Content Browser

UE's Content Browser does not show Plugin content folders by default. If you want to see these, you need to turn it on at Content Browser -> Settings -> Show Plugin Content.

Notes on binary serialization

Unreal's Binary serialization of UObject types works mostly out of the box without any need for you to write any code. There are a few caveats:

• When referencing assets inside content objects use TSoftObjectPtr.
• When referencing types inside content objects use UClass*.
• When referencing non-asset IBeamJsonSerializableUObject inside content objects use UMyObject* directly and add DefaultToInstanced, EditInlineNew to the UCLASS macro of that type.

Doing that will make the binary serialization of content for local caching work in each of these cases.

For serializing arbitrary data structures, prefer FBeamJsonSerializableUStruct subtypes of UBeamContentObject as these are simpler to set up. Use inlined IBeamJsonSerializableUObject only when you need a recursive type.

For examples of handling this edge case, you can look at the UBeamGameTypeContent and UBeamStatComparisonRule types shipped with the SDK.
