User Slots

User Slots are at the core of how the SDK handles local users.

Each UserSlot is a named slot that represents a local user.

These are defined in UBeamCoreSettings::RuntimeUserSlots (found in Project Settings -> Engine). They are used to organize local data caches for a single Beamable user. These are stored in Unreal's default Saved folder.

Unreal Local Player Index

You can think of the UBeamCoreSettings::RuntimeUserSlots array as though it were indexed by Unreal's own LocalPlayerIndex.

Almost all of our APIs take in a FUserSlot struct representing the local user making the request. Only "public" APIs do not require them (APIs that you can call after the SDK has been initialized but before any Login has happened).

If you're game has no local multiplayer (just a single local player), you only need to know a few things about UserSlots:

• You should pass in the Owner User Slot (the one mapped to the "Local Player 0") to any calls taking an FUserSlot.
  • In C++, you can use UBeamCoreSettings::GetOwnerPlayerSlot() to get it.
• In Blueprints, you'll only have to manually pass in user slots if you change the default slot from "Player0".
• If you're using any of our lower-level APIs (UBeam____Api subsystems and Low-Level blueprint nodes), you might see functions that take in a UObject* ContextObject.
  • These are there to support Unreal's Multiplayer PIE mode (for the same reason a lot of UE's own APIs also need one of these).
  • If you're calling them from a UGameInstanceSubsystem, UActorComponent or AActor or Blueprint, you can pass itself (this/Self) to this parameter.

Non-Local Multiplayer Games

If you're game is a normal one-player-per-client multiplayer game, you might want to take a look at our Matchmaking and Lobbies systems.

For games that do want to support multiple local players (each with their own Beamable account), the next sessions explain how this concept helps.

User Slots At Runtime

The UBeamUserSlots Engine Subsystem is responsible for:

• Storing the authentication tokens for the last account that logged into a particular slot.
  • These are kept in Unreal's default Saved directory.
• Enabling local co-op games to have multiple players logged in at the same time.
  • For more on login flows, see the SDK Lifecycle and various flavors described in Identity.
• Handles support for Multiplayer PIE-mode by namespacing each Slot (UE's FWorldContext::WorldType and FWorldContext::PIEInstance).
  • To do so, we need to find an UWorld to get the context from.
  • This is why, like UE, we take in a UObject* CallingContext in certain parts of our APIs.
  • At runtime, this parameter is NEVER optional!
• Assert that only slots defined in the UBeamCoreSettings are in use.
  • Any User Slot with Test in its name is exempt from this rule so you can write automated tests with arbitrary amounts of user slots by using user slots with Test in their names.

This subsystem does not handle the actual logging in and logging out. That is handled by the UBeamRuntime , a GameInstanceSubsystem, is responsible for PIE instances and packaged games.

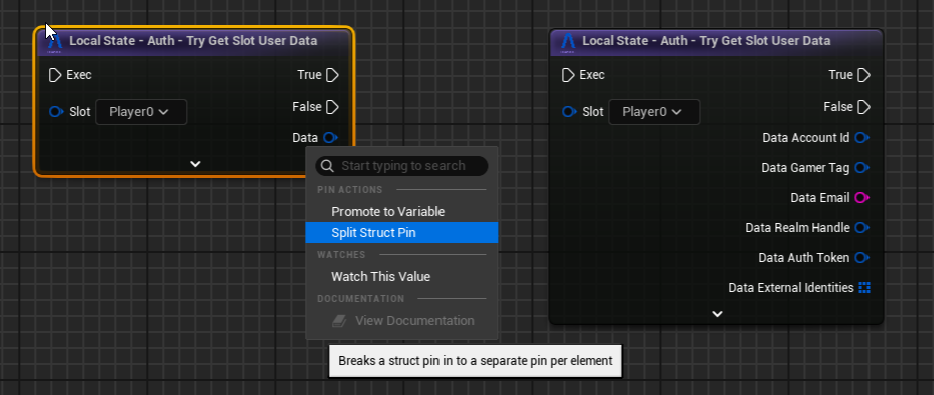

After logging in, you can use these Blueprint nodes to get information about the account logged-into the given slot.
