King of the Ring - Multiplayer Sample¶

Welcome to "King of the Ring" (KOR). You must Attack with power & dodge with speed! Last player alive, wins.

Related Features

• Matchmaking - Connect remote players in a room
• Multiplayer - Real-time multiplayer game functionality that enables multiple players to interact in shared game sessions

Screenshots¶

The player navigates from the Intro Scene to the Game Scene, where all the action takes place.

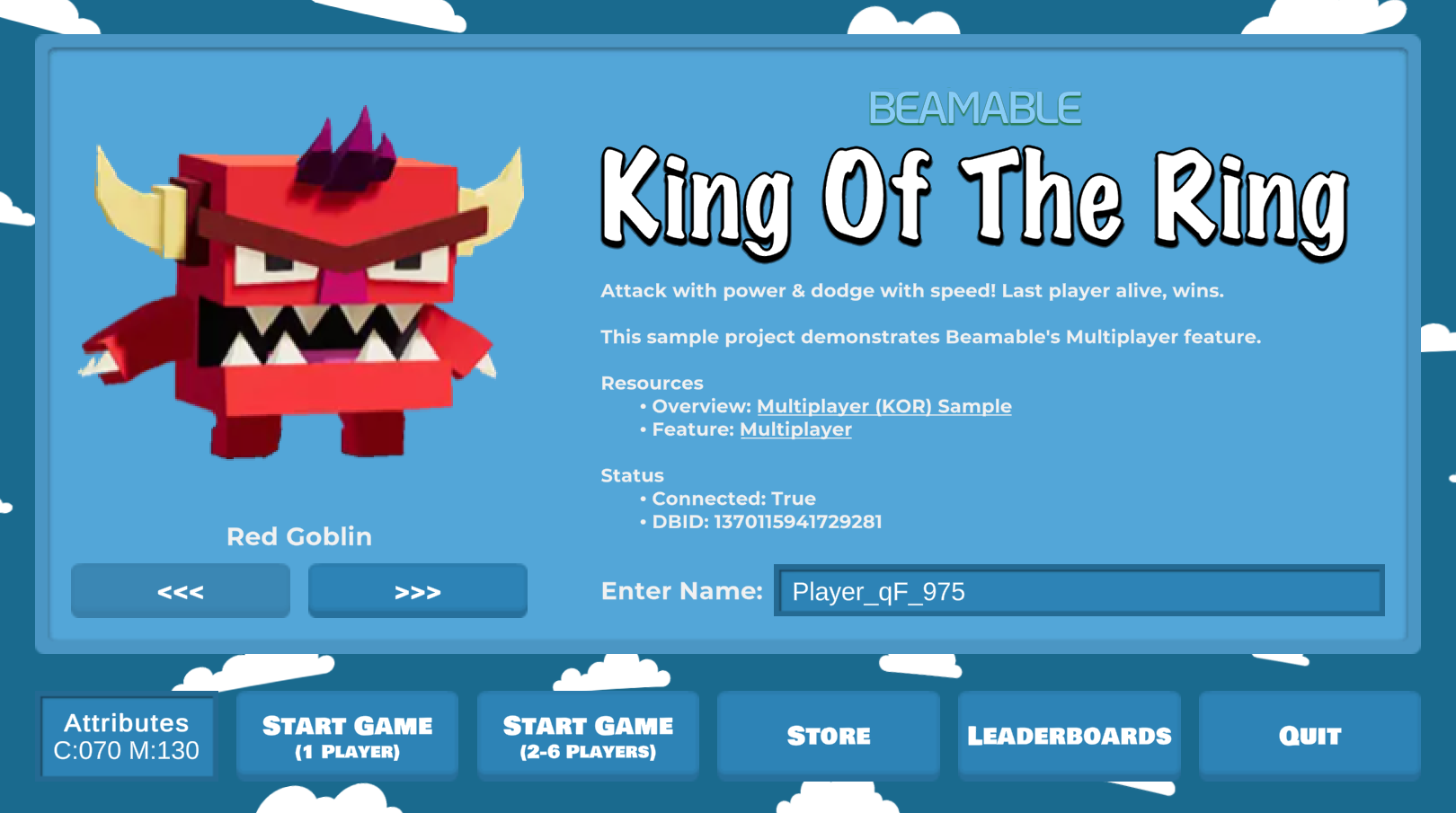

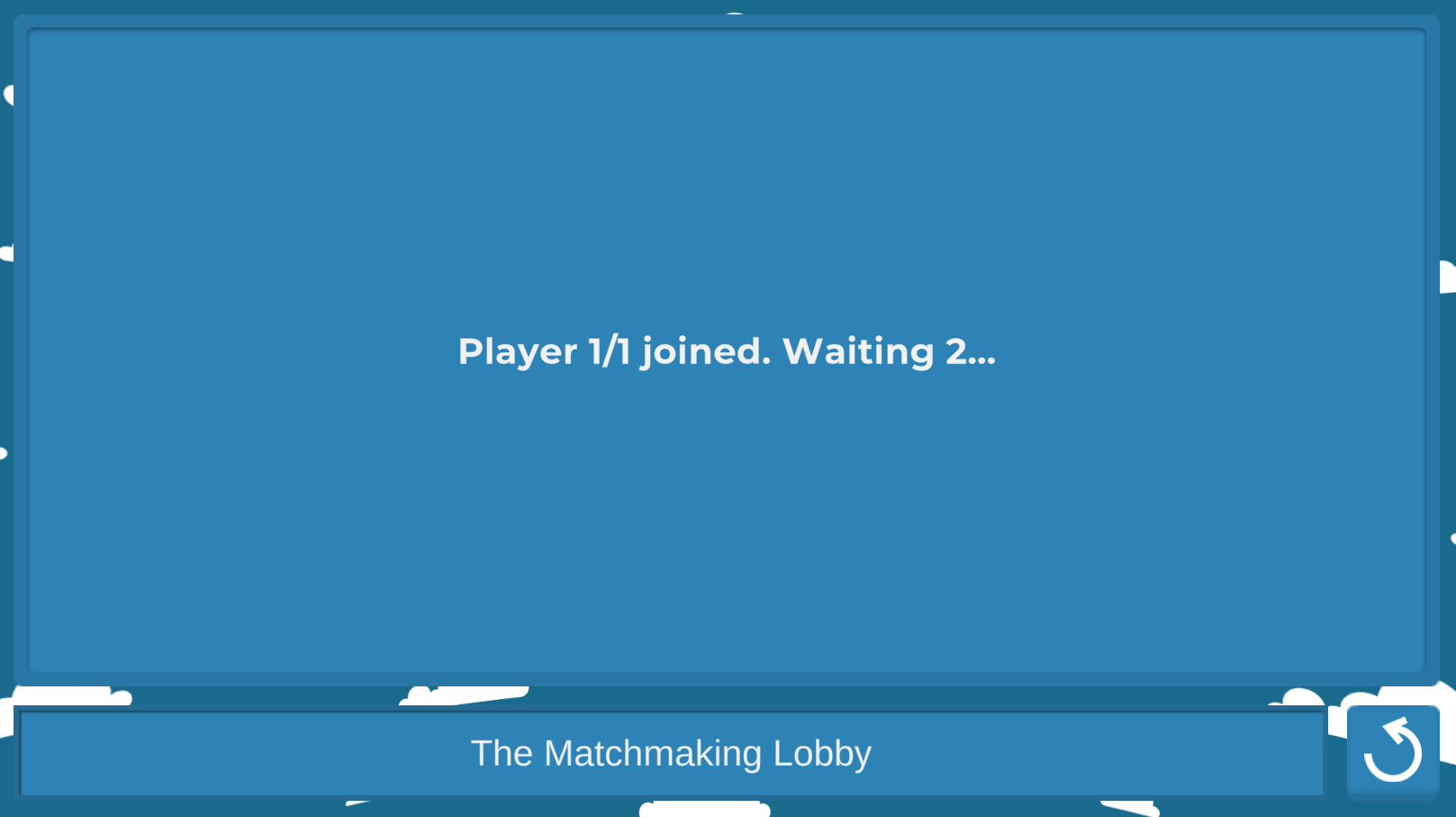

Intro Scene	Lobby Scene

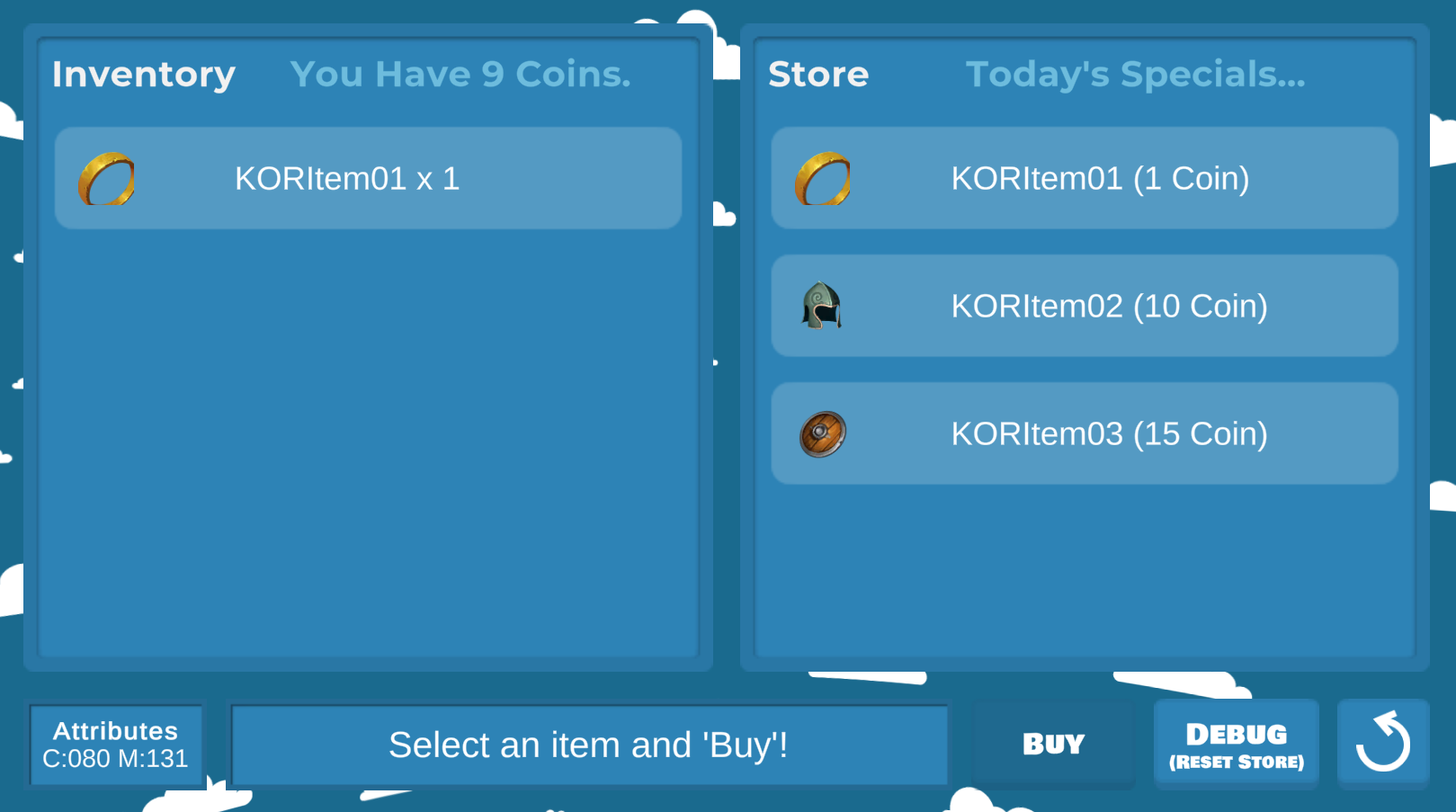

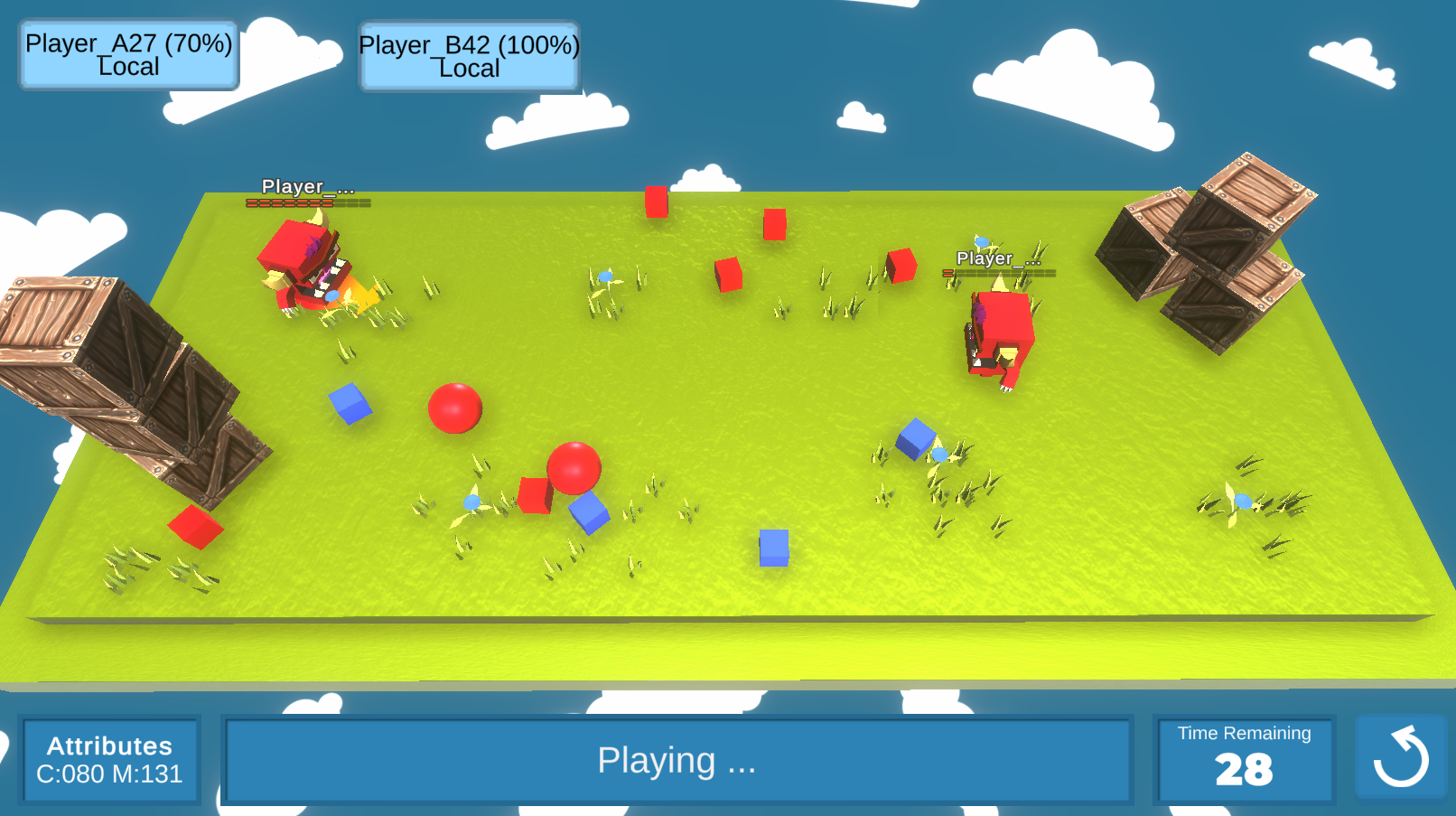

Game Scene	Store Scene

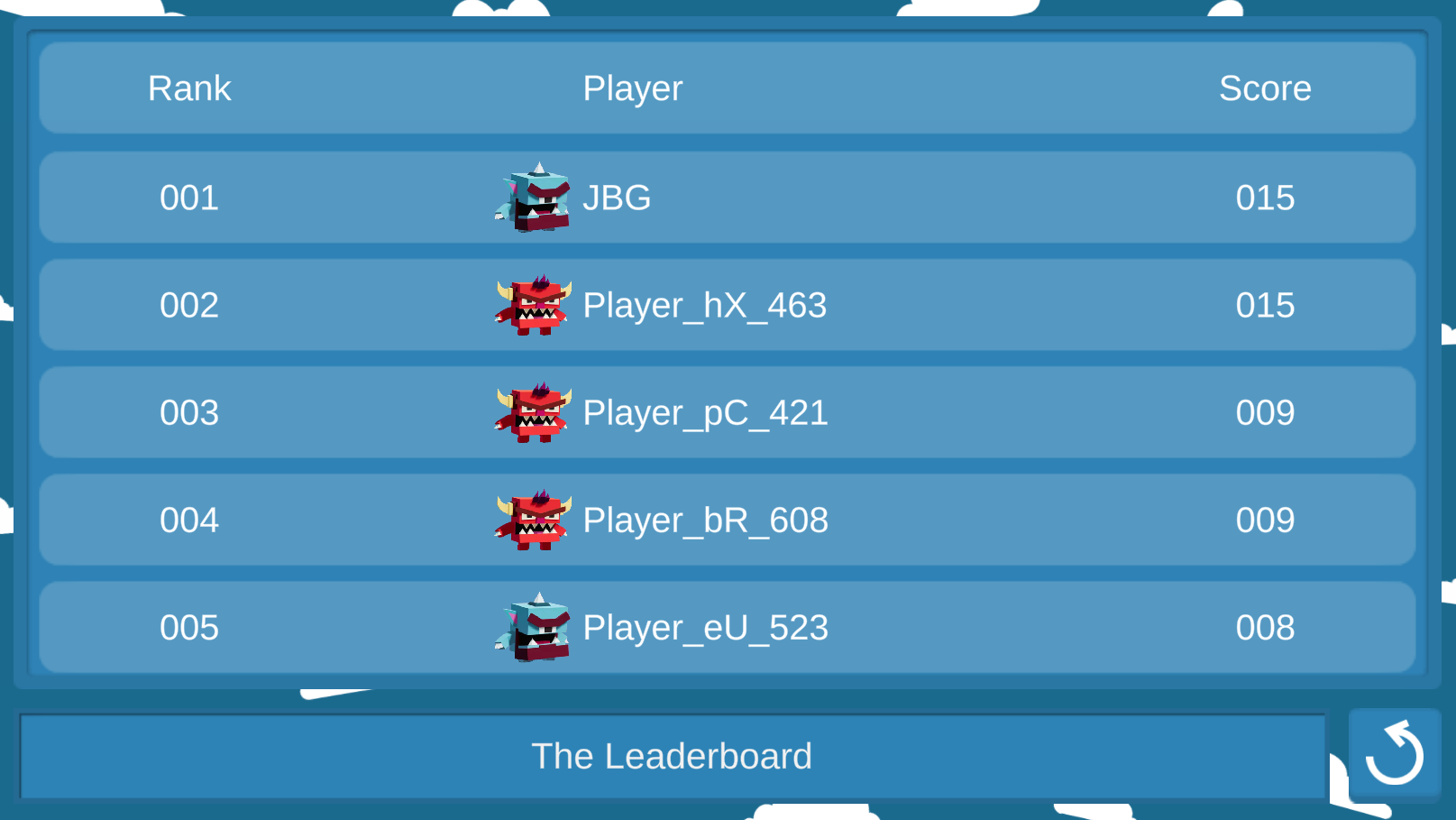

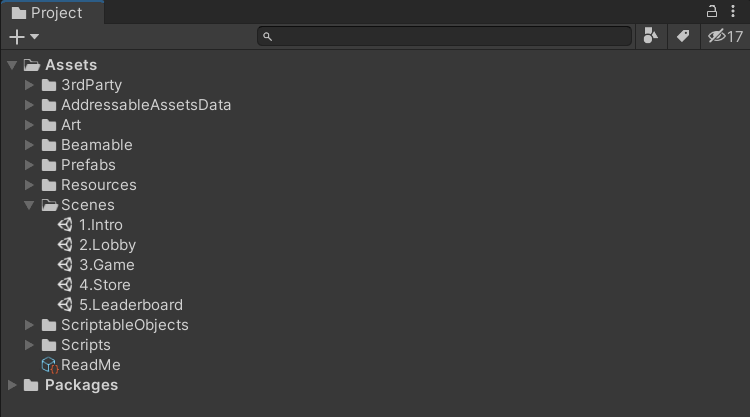

Leaderboard Scene	Project Window

Multiplayer (KOR) - Guide¶

This downloadable sample game project showcases the Multiplayer feature in game development. Or watch this video:

Download¶

Learning Resources:

Source Detail

1. Download the Multiplayer KOR Sample Project
2. Open in Unity Editor (Version 2021.3 or later)
3. Open the Beamable Toolbox
4. Sign-In / Register To Beamable. See Installing Beamable for more info
5. Rebuild the Unity Addressables: Unity → Window → Asset Management → Groups, then Build → Update a Previous Build
6. Open the 1.Intro Scene
7. Play The Scene: Unity → Edit → Play
8. Click "Start Game: Human vs Bot" for an easy start. Or do a standalone build of the game and run the build. Then run the Unity Editor. In both running games, choose "Start Game: Human vs Human" to play against yourself
9. Enjoy!

Note: Sample projects are compatible with the latest supported Unity versions

Rules of the Game¶

2-6 players enter the battle "ring"
Tap and hold anywhere in the ring to move your player
Collide with other players to bump them
An player who falls out of the ring, loses shield points and ranking.
The last player alive, wins!

Pro Tip: Earn coins by playing the game. Spend coins in the store to improve your avatar.

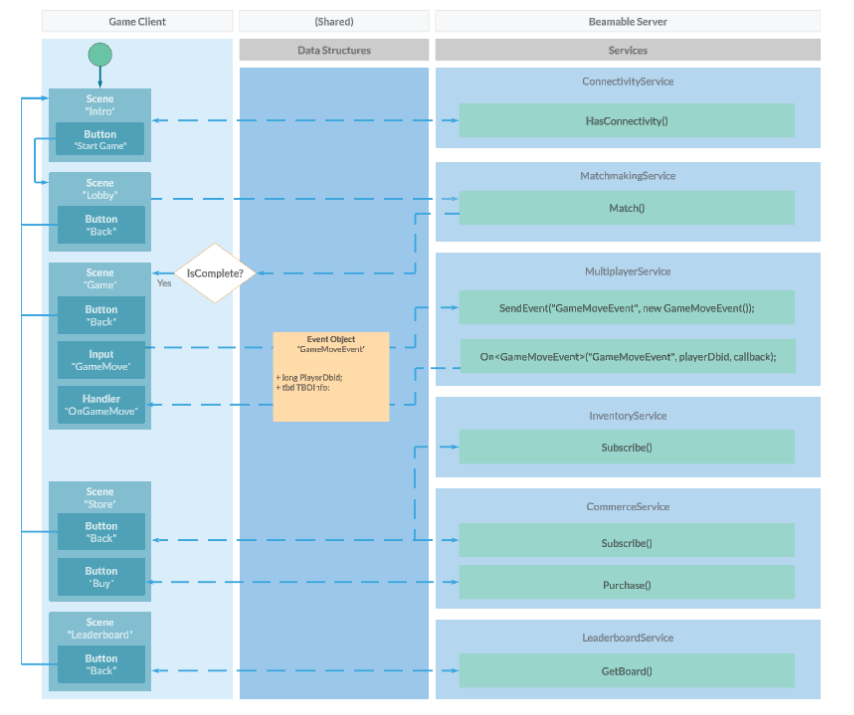

Player Experience Flowchart¶

The player experience flowchart shows the game flow and interactions between different systems.

Game Maker User Experience¶

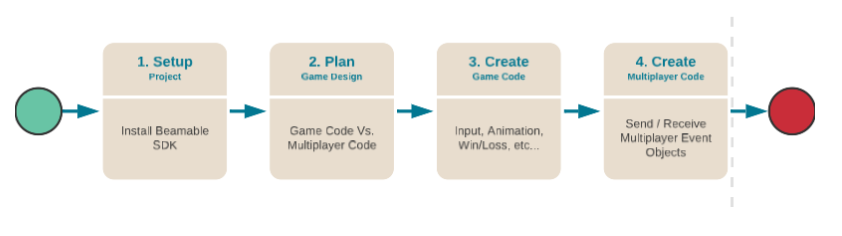

The game maker user experience shows the development workflow. There are several major parts to this game creation process.

Steps¶

Here are the steps to implement the sample:

These steps are already complete in the sample project. The instructions here explain the process.

Related Features

• Matchmaking - Connect remote players in a room
• Multiplayer - Real-time multiplayer game functionality that enables multiple players to interact in shared game sessions

Step 1. Setup Project¶

Here are instructions to setup the Beamable SDK and "GameType" content.

Step	Detail
1. Install the Beamable SDK and Register/Login	• See Installing Beamable for more info.

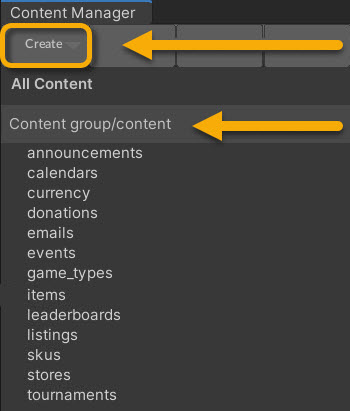

2. Open the Content Manager Window	• Unity → Window → Beamable → Open Content Manager
3. Create the "GameType" content	• Select the content type in the list • Press the "Create" button • Populate the content name

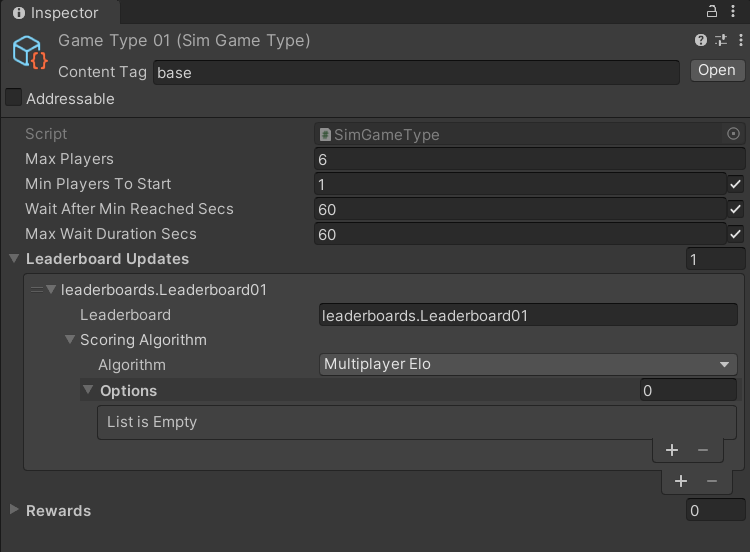

4. Configure "GameType" content	• Populate the `Max Players` field Note: The other fields are optional and may be needed for advanced use cases
5. Save the Unity Project	• Unity → File → Save Project Best Practice: If you are working on a team, commit to version control in this step
6. Publish the content	• Press the "Publish" button in the Content Manager Window

Step 2. Plan the Multiplayer Game Design¶

See Multiplayer for more info.

Step 3. Create the Game Code¶

This step includes the bulk of time and effort the project.

Step	Detail
1. Create C# game-specific logic	• Implement game logic • Handle player input • Render graphics & sounds Note: This represents the bulk of the development effort. The details depend on the specifics of the game project.

Inspector

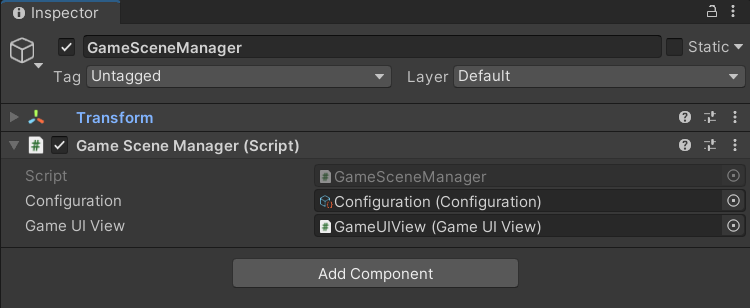

Here is the GameSceneManager.cs main entry point for the Game Scene interactivity.

The "Configuration" and "GameUIView" are passed as references

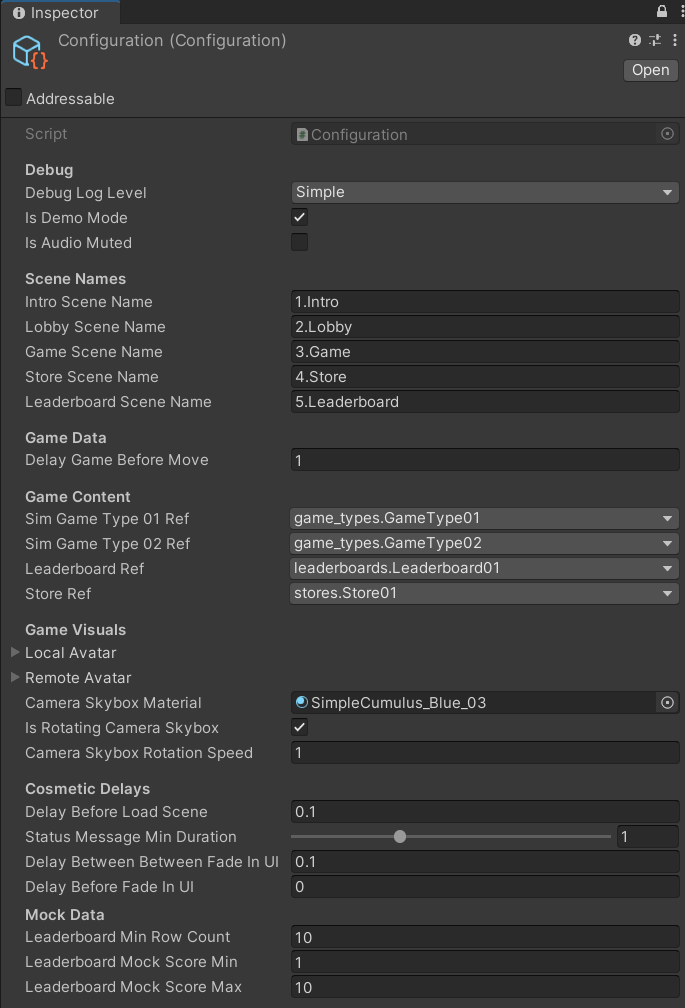

Here is the Configuration.cs holding high-level, easily-configurable values used by various areas on the game code. Several game classes reference this data.

Gotchas

Here are some common issues and solutions:

• While the name is similar, this Configuration.cs is wholly unrelated to Beamable's Configuration Manager.

The "Configuration" values are easily configurable

Optional: Game Makers may experiment with new Delay values here to allow animations to occur faster or slower.

Code

The GameSceneManager is the main entry point to the Game Scene logic.

Here a a few highlights.

Send Game Event

NetworkController.Instance.SendNetworkMessage(new ReadyEvent(_ownAttributes, alias));

Receive Game Event

private void OnPlayerReady (ReadyEvent readyEvent)
{
    // Handle consequences...
}

In this section you will find some partial code snippets. Download the project to see the complete code.

GameSceneManager.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Beamable.Examples.Features.Multiplayer.Core;
using Beamable.Samples.KOR.Behaviours;
using Beamable.Samples.KOR.Data;
using Beamable.Samples.KOR.Multiplayer;
using Beamable.Samples.KOR.Multiplayer.Events;
using Beamable.Samples.KOR.Views;
using UnityEngine;
using Beamable.Experimental.Api.Sim;
using Beamable.Samples.Core.Debugging;
using Beamable.Samples.Core.UI;
using Beamable.Samples.Core.UI.DialogSystem;
using Beamable.Samples.Core.Utilities;

namespace Beamable.Samples.KOR
{
    /// <summary>
    /// Handles the main scene logic: Game
    /// </summary>
    public class GameSceneManager : MonoBehaviour
    {
        //  Properties -----------------------------------
        public GameUIView GameUIView { get { return _gameUIView; } }
        public Configuration Configuration { get { return _configuration; } }
        public List<SpawnPointBehaviour> AvailableSpawnPoints;

        //  Fields ---------------------------------------
        private IBeamableAPI _beamableAPI = null;

        [SerializeField]
        private Configuration _configuration = null;

        [SerializeField]
        private GameUIView _gameUIView = null;

        private Attributes _ownAttributes = null;

        private List<SpawnablePlayer> _spawnablePlayers = new List<SpawnablePlayer>();
        private List<SpawnPointBehaviour> _unusedSpawnPoints = new List<SpawnPointBehaviour>();
        private HashSet<long> _dbidReadyReceived = new HashSet<long>();
        private bool _hasSpawned = false;

        //  Unity Methods   ------------------------------
        protected void Start()
        {
            for (int i = 0; i < 6; i++)
                _gameUIView.AvatarUIViews[i].GetComponent<CanvasGroup>().alpha = 0.0f;

            _gameUIView.BackButton.onClick.AddListener(BackButton_OnClicked);
            SetupBeamable();
        }

        //  Other Methods   ------------------------------
        private void DebugLog(string message)
        {
            // Respects Configuration.IsDebugLog Checkbox
            Configuration.Debugger.Log(message);
        }

        private async void SetupBeamable()
        {
            _beamableAPI = await Beamable.API.Instance;
            await RuntimeDataStorage.Instance.CharacterManager.Initialize();
            _ownAttributes = await RuntimeDataStorage.Instance.CharacterManager.GetChosenPlayerAttributes();

            // Do this after calling "Beamable.API.Instance" for smoother UI
            _gameUIView.CanvasGroupsDoFadeIn();

            // Set defaults if scene was loaded directly
            if (RuntimeDataStorage.Instance.TargetPlayerCount == KORConstants.UnsetValue)
            {
                DebugLog(KORHelper.GetSceneLoadingMessage(gameObject.scene.name, true));
                RuntimeDataStorage.Instance.TargetPlayerCount = 1;
                RuntimeDataStorage.Instance.CurrentPlayerCount = 1;
                RuntimeDataStorage.Instance.LocalPlayerDbid = _beamableAPI.User.id;
                RuntimeDataStorage.Instance.MatchId = KORMatchmaking.GetRandomMatchId();
            }
            else
            {
                DebugLog(KORHelper.GetSceneLoadingMessage(gameObject.scene.name, false));
            }

            // Set the ActiveSimGameType. This happens in 2+ spots to handle direct scene loading
            if (RuntimeDataStorage.Instance.IsSinglePlayerMode)
                RuntimeDataStorage.Instance.ActiveSimGameType = await _configuration.SimGameType01Ref.Resolve();
            else
                RuntimeDataStorage.Instance.ActiveSimGameType = await _configuration.SimGameType02Ref.Resolve();

            // Initialize ECS
            SystemManager.StartGameSystems();

            // Show the player's attributes in the UI of this scene

            _gameUIView.AttributesPanelUI.Attributes = _ownAttributes;

            // Initialize Networking
            await NetworkController.Instance.Init();

            // Set Available Spawns
            _unusedSpawnPoints = AvailableSpawnPoints.ToList();

            NetworkController.Instance.Log.CreateNewConsumer(HandleNetworkUpdate);
            // Optional: Stuff to use later when player moves are incoming
            long tbdIncomingPlayerDbid = _beamableAPI.User.id; // test value;
            DebugLog($"MinPlayerCount = {RuntimeDataStorage.Instance.MinPlayerCount}");
            DebugLog($"MaxPlayerCount = {RuntimeDataStorage.Instance.MaxPlayerCount}");
            DebugLog($"CurrentPlayerCount = {RuntimeDataStorage.Instance.CurrentPlayerCount}");
            DebugLog($"LocalPlayerDbid = {RuntimeDataStorage.Instance.LocalPlayerDbid}");
            DebugLog($"IsLocalPlayerDbid = {RuntimeDataStorage.Instance.IsLocalPlayerDbid(tbdIncomingPlayerDbid)}");
            DebugLog($"IsSinglePlayerMode = {RuntimeDataStorage.Instance.IsSinglePlayerMode}");

            // Optional: Show queueable status text onscreen
            SetStatusText(KORConstants.GameUIView_Playing, TMP_BufferedText.BufferedTextMode.Immediate);

            // Optional: Add easily configurable delays
            await Task.Delay(TimeSpan.FromSeconds(_configuration.DelayGameBeforeMove));

            // Optional: Play sound
            //SoundManager.Instance.PlayAudioClip(SoundConstants.Click01);

            // Optional: Render color and text of avatar ui
            _gameUIView.AvatarViews.Clear();
        }

        public async void OnPlayerJoined(PlayerJoinedEvent joinEvent)
        {
            if (_spawnablePlayers.Find(i => i.DBID == joinEvent.PlayerDbid) != null)
                return;

            var spawnIndex = NetworkController.Instance.rand.Next(0, _unusedSpawnPoints.Count);
            var spawnPoint = _unusedSpawnPoints[spawnIndex];
            _unusedSpawnPoints.Remove(spawnPoint);

            SpawnablePlayer newPlayer = new SpawnablePlayer(joinEvent.PlayerDbid, spawnPoint);
            _spawnablePlayers.Add(newPlayer);
            await RuntimeDataStorage.Instance.CharacterManager.Initialize();
            newPlayer.ChosenCharacter = await RuntimeDataStorage.Instance.CharacterManager.GetChosenCharacterByDBID(joinEvent.PlayerDbid);
            string alias = await RuntimeDataStorage.Instance.CharacterManager.GetPlayerAliasByDBID(joinEvent.PlayerDbid);

            DebugLog($"alias from joinEvent dbid={joinEvent.PlayerDbid} alias={alias}");

            if (joinEvent.PlayerDbid == NetworkController.Instance.LocalDbid)
                NetworkController.Instance.SendNetworkMessage(new ReadyEvent(_ownAttributes, alias));
        }

        private void OnPlayerReady(ReadyEvent readyEvt)
        {
            Configuration.Debugger.Log($"Getting ready for dbid={readyEvt.PlayerDbid}"
                                       + $" attributes move/charge={readyEvt.aggregateMovementSpeed}/{readyEvt.aggregateChargeSpeed}", DebugLogLevel.Verbose);

            _dbidReadyReceived.Add(readyEvt.PlayerDbid);

            SpawnablePlayer sp = _spawnablePlayers.Find(i => i.DBID == readyEvt.PlayerDbid);
            sp.Attributes = new Attributes(readyEvt.aggregateChargeSpeed, readyEvt.aggregateMovementSpeed);
            sp.PlayerAlias = readyEvt.playerAlias;

            Configuration.Debugger.Log($"alias from readyEvt dbid={readyEvt.PlayerDbid} alias={sp.PlayerAlias}");

            Configuration.Debugger.Log($"OnPlayerReady Players={_dbidReadyReceived.Count}/{RuntimeDataStorage.Instance.CurrentPlayerCount}", DebugLogLevel.Verbose);
            if (!_hasSpawned && _dbidReadyReceived.Count == RuntimeDataStorage.Instance.CurrentPlayerCount)
            {
                _hasSpawned = true;
                SpawnAllPlayersAtOnce();
                StartGameTimer();
            }
        }

        private void StartGameTimer()
        {
            GameUIView.GameTimerBehaviour.StartMatch();
            GameUIView.GameTimerBehaviour.OnGameOver += async () =>
            {
                // TODO: score the players, and end the game.
                Debug.Log("Game over!");

                var uis = FindObjectsOfType<AvatarUIView>();
                var validUis = uis.Where(ui => ui.Player).ToList();
                validUis.Sort((a, b) => a.SpawnablePlayer.DBID > b.SpawnablePlayer.DBID ? 1 : -1);
                validUis.Sort((a, b) => a.Player.HealthBehaviour.Health > b.Player.HealthBehaviour.Health ? -1 : 1);

                var scores = validUis.Select(ui => new PlayerResult
                {
                    playerId = ui.SpawnablePlayer.DBID,
                    score = ui.Player.HealthBehaviour.Health,
                }).ToArray();
                var selfRank = 0;
                var selfScore = scores[0];
                for (var i = 0; i < scores.Length; i++)
                {
                    scores[i].rank = i;
                    if (scores[i].playerId == NetworkController.Instance.LocalDbid)
                    {
                        selfRank = i;
                        selfScore = scores[i];
                    }
                }

                foreach (var motionBehaviour in FindObjectsOfType<AvatarMotionBehaviour>())
                {
                    motionBehaviour.Stop();
                    motionBehaviour.enabled = false;
                }

                foreach (var inputBehaviour in FindObjectsOfType<PlayerInputBehaviour>())
                {
                    inputBehaviour.enabled = false;
                }

                var results = await NetworkController.Instance.ReportResults(scores);

                var isWinner = selfRank == 0;
                var earnings = string.Join(",", results.currenciesGranted.Select(grant => $"{grant.amount}x{grant.symbol}"));
                var earningsBody = string.IsNullOrWhiteSpace(earnings)
                    ? "nothing"
                    : earnings;
                var body = "You came in place: " + (selfRank + 1) + ". You earned " + earningsBody;
                _gameUIView.DialogSystem.ShowDialogBox<DialogUI>(

                    // Renders this prefab. DUPLICATE this prefab and drag
                    // into _storeUIView to change layout
                    _gameUIView.DialogSystem.DialogUIPrefab,

                    // Set Text
                    isWinner
                        ? KORConstants.Dialog_GameOver_Victory
                        : KORConstants.Dialog_GameOver_Defeat,
                    body,

                    // Create zero or more buttons
                    new List<DialogButtonData>
                    {
                        new DialogButtonData(KORConstants.Dialog_Ok, () =>
                        {
                            KORHelper.PlayAudioForUIClickPrimary();
                            _gameUIView.DialogSystem.HideDialogBox();

                            // Clean up manager
                            _spawnablePlayers.Clear();
                            _unusedSpawnPoints.Clear();
                            _dbidReadyReceived.Clear();
                            _hasSpawned = false;
                            NetworkController.Instance.Cleanup();

                            // Destroy ECS
                            SystemManager.DestroyGameSystems();

                            // Change scenes
                            StartCoroutine(KORHelper.LoadScene_Coroutine(_configuration.IntroSceneName,
                                _configuration.DelayBeforeLoadScene));
                        })
                    });
            };
        }

        private void SpawnAllPlayersAtOnce()
        {
            List<CanvasGroup> avatarUiCanvasGroups = new List<CanvasGroup>();

            for (int p = 0; p < _spawnablePlayers.Count; p++)
            {
                SpawnablePlayer sp = _spawnablePlayers[p];

                Configuration.Debugger.Log($"DBID={sp.DBID} Spawning character={sp.ChosenCharacter.CharacterContentObject.ContentName}"
                                           + $" attributes move/charge={sp.Attributes.MovementSpeed}/{sp.Attributes.ChargeSpeed}", DebugLogLevel.Verbose);

                DebugLog($"playerAlias={sp.PlayerAlias}");

                AvatarView avatarView = GameObject.Instantiate<AvatarView>(sp.ChosenCharacter.AvatarViewPrefab);
                avatarView.transform.SetPhysicsPosition(sp.SpawnPointBehaviour.transform.position);

                Player player = avatarView.gameObject.GetComponent<Player>();
                player.SetAlias(sp.PlayerAlias);

                avatarView.SetForPlayer(sp.DBID);
                _gameUIView.AvatarViews.Add(avatarView);

                if (sp.DBID == NetworkController.Instance.LocalDbid)
                    avatarView.gameObject.GetComponent<AvatarMotionBehaviour>().PreviewBehaviour = null;
                else
                    avatarView.gameObject.GetComponent<PlayerInputBehaviour>().enabled = false;

                AvatarMotionBehaviour amb = avatarView.gameObject.GetComponent<AvatarMotionBehaviour>();
                amb.Attributes = sp.Attributes;

                _gameUIView.AvatarUIViews[p].Set(player, sp);
                _gameUIView.AvatarUIViews[p].Render();
                avatarUiCanvasGroups.Add(_gameUIView.AvatarUIViews[p].GetComponent<CanvasGroup>());
            }

            TweenHelper.CanvasGroupsDoFade(avatarUiCanvasGroups, 0.0f, 1.0f, 1.0f, 0.0f, 0.0f);
        }

        public void HandleNetworkUpdate(TimeUpdate update)
        {
            foreach (var evt in update.Events)
            {
                HandleNetworkEvent(evt);
            }
        }

        public void HandleNetworkEvent(KOREvent korEvent)
        {
            switch (korEvent)
            {
                case ReadyEvent readyEvt:
                    OnPlayerReady(readyEvt);
                    break;

                case PlayerJoinedEvent joinEvt:
                    OnPlayerJoined(joinEvt);
                    break;
            }
        }

        /// <summary>
        /// Render UI text
        /// </summary>
        /// <param name="message"></param>
        /// <param name="statusTextMode"></param>
        public void SetStatusText(string message, TMP_BufferedText.BufferedTextMode statusTextMode)
        {
            _gameUIView.BufferedText.SetText(message, statusTextMode);
        }

        //  Event Handlers -------------------------------
        private void BackButton_OnClicked()
        {
            KORHelper.PlayAudioForUIClickBack();

            _gameUIView.DialogSystem.ShowDialogBox<DialogUI>(

                // Renders this prefab. DUPLICATE this prefab and drag
                // into _storeUIView to change layout
                _gameUIView.DialogSystem.DialogUIPrefab,

                // Set Text
                KORConstants.Dialog_AreYouSure,
                "This will end your game.",

                // Create zero or more buttons
                new List<DialogButtonData>
                {
                    new DialogButtonData(KORConstants.Dialog_Ok, () =>
                    {
                        KORHelper.PlayAudioForUIClickPrimary();
                        _gameUIView.DialogSystem.HideDialogBox();

                        // Clean up manager
                        _spawnablePlayers.Clear();
                        _unusedSpawnPoints.Clear();
                        _dbidReadyReceived.Clear();
                        _hasSpawned = false;
                        NetworkController.Instance.Cleanup();

                        // Destroy ECS
                        SystemManager.DestroyGameSystems();

                        // Change scenes
                        StartCoroutine(KORHelper.LoadScene_Coroutine(_configuration.IntroSceneName,
                            _configuration.DelayBeforeLoadScene));
                    }),
                    new DialogButtonData(KORConstants.Dialog_Cancel, () =>
                    {
                        KORHelper.PlayAudioForUIClickSecondary();
                        _gameUIView.DialogSystem.HideDialogBox();
                    })
                });
        }
    }
}

Step 4. Create the Multiplayer Code¶

Now that the core game logic is setup, use Beamable to connect 2 (or more) players together. Create the Multiplayer event objects, send outgoing events, and handle incoming events.

Step	Detail
1. Create C# Multiplayer-specific logic	• Create event objects • Send outgoing event • Handle incoming events Note: Its likely that game makers will add multiplayer functionality throughout* development including during step #3. For sake of clarity, it is described here as a separate, final step #4.*
2. Play the `1.Intro` Scene	• Unity → Edit → Play
3. Enjoy the game!	• Can you beat the opponents?
4. Stop the Scene	• Unity → Edit → Stop

Additional Experiments¶

Here are some optional experiments game makers can complete in the sample project.

Did you complete all the experiments with success? we'd love to hear about it. Contact us.

Difficulty	Scene	Name	Detail
Beginner	Game	Tweak Configuration	• Update the Configuration.asset values in the Unity Inspector Window Note: Experiment and have fun!
Intermediate	Lobby	Add Lobby Graphics	• The lobby shows text indicating "Player 1/2 joined" • As each player joins the multiplayer matchmaking session, show the 2D asset onscreen and player's name
Intermediate	Game	Add a new character	• The game includes a character selector and several characters • Add 2D/3D assets for a new character • Update Beamable content to define the new character Note: No 3D skills? An alternative is to duplicate an existing 3D character prefab and recolor its texture
Intermediate	Game	Add "Jump" Input	• The game includes 'tap and hold' input to move the character • Add a 'Jump' button in the bottom menu • Apply a physics force upwards on the local player Note: Send a new multiplayer game event to all players to keep the game in sync
Advanced	Game	Add a collectible pickup	• Spawn an item in to the game world • A character collides with the item to collect the item • Collecting the item rewards the player (Shield, Speed, etc...)
Advanced	Game	Add a bomb	• Spawn a bomb in to the game world • After 3 seconds the bomb explodes and disappears • The explosion causes a physics force to push away players and items

Matchmaking¶

In multiplayer gaming, matchmaking is the process of choosing a room based on criteria (e.g. "Give me a room to play in with 2 total players of any skill level"). Beamable supports matchmaking through its matchmaking service.

King of the Ring - Multiplayer Sample¶

Screenshots¶

Multiplayer (KOR) - Guide¶

Download¶

Rules of the Game¶

Player Experience Flowchart¶

Game Maker User Experience¶

Steps¶

Step 1. Setup Project¶

Step 2. Plan the Multiplayer Game Design¶

Step 3. Create the Game Code¶

Step 4. Create the Multiplayer Code¶

Additional Experiments¶

Matchmaking¶

Game Security¶

Playing "Against Yourself"¶

Randomization and Determinism¶
